| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Connector Type | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power | |
| Power (Watts) | |
| Prop 65 | |
| Region Utilized | |
| Voltage | |
| Weight | |
| Width | |
| Wire Gauge |

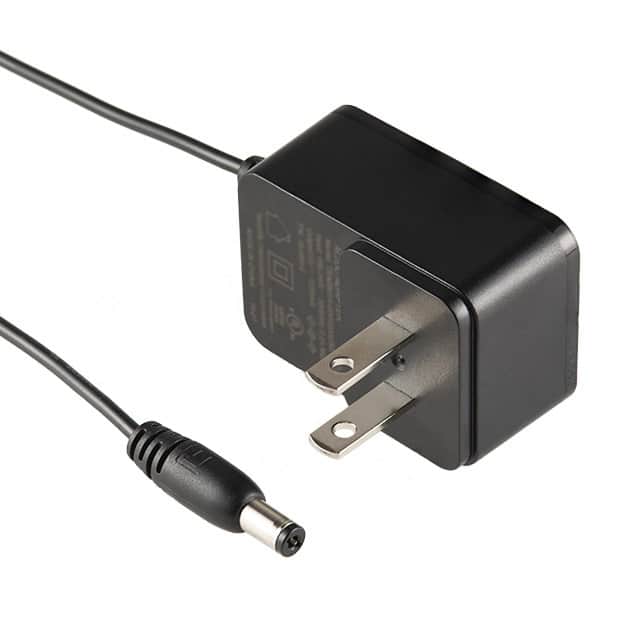

This AC/DC adapter from Tensility International, part number 16-00015, is designed for wall mounting and operates with a universal input voltage range of 100-240 Vac.
It delivers a stable 5Vdc output current of 1.0A, providing a total continuous power of 5W. The adapter is certified to meet DoE Level VI efficiency standards, ensuring reduced energy consumption. It features a NEMA 1-15P input connector for North American outlets and a 5.5x2.5x9.5mm barrel plug output with a positive center pin, connected via a 1.5-meter cable.
The unit is built for commercial ITE applications and complies with UL 62368-1 safety standards. Its compact dimensions (51.0mm x 36.5mm x 25.0mm) make it suitable for various installations. The operating temperature range is from 0°C to 45°C.
100-240 Vac，50-60 Hz
Wall Mount (Class II)，尺寸51.0mm x 36.5mm x 25.0mm，重量57g
0°C ~ 45°C
5 Vdc，1.0 A，最大功率5 W
DoE Level VI，最低效率73.62%
过流保护（105-200%负载）和短路保护（自恢复）
2.5mm内径x5.5mm外径x9.5mm长桶形插头，正极中心
