| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
240 pcs
|
240 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AWG Range | |
| CSA Rating | |
| Color | |
| Contact Material | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Flammability Class | |
| IP Rating | |
| Industrial Grade | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Package Type | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Rated Current (20°C) | |
| Rated Current (40°C) | |
| Rated Impulse Withstand Voltage | |
| Rated Voltage (II/2) | |
| Standard Package Quantity | |
| Stripping Length | |
| Termination Style | |
| Tightening Torque | |
| Type | |
| UL 1059 Rating | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge or Range |

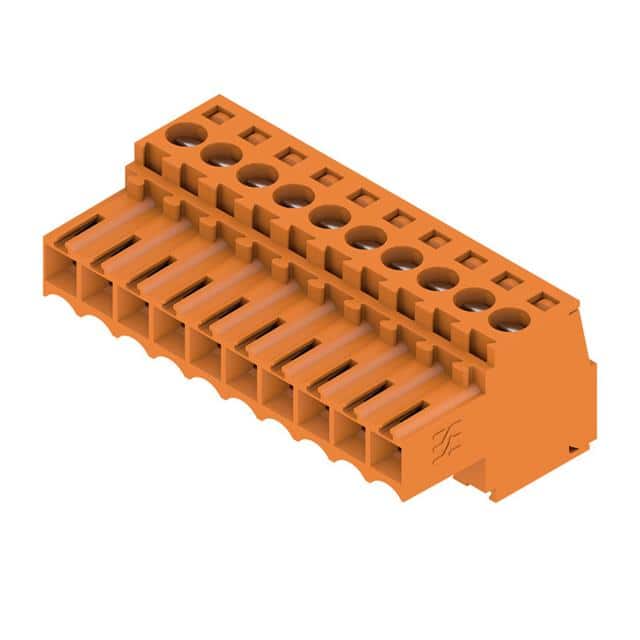

The Weidmüller 1597440000 (BL 3.5/10 SN OR) is a 10-position plug with female sockets designed for PCB plug-in connector applications. It features a 3.50mm (0.138 inch) pitch and a screw clamp (clamping yoke) termination system suitable for solid and flexible wires from 0.2mm² to 1.5mm² (AWG 28-14). The orange PBT insulating body and tin-plated copper alloy contacts provide reliable performance in industrial environments.
This plug accepts a 180° wire entry direction and requires a stripping length of 6mm. The tightening torque range is 0.2-0.25 Nm. Electrical ratings include 300V (UL/CSA) and 10A at 40°C, with a rated impulse withstand voltage of 2.5kV. The connector is rated IP20 for finger touch protection and carries UL 94 V-0 flammability rating.
Designed for free hanging (in-line) mounting, this plug mates with corresponding headers to create a secure connection in control cabinets, industrial machinery, and building automation systems. The clamping yoke ensures vibration-resistant terminations. Standard packaging is 50 pieces per box.
The pitch is 3.50mm (0.138 inch).
UL/CSA rated 300V and 10A. Maximum rated current at 20°C is 12A. Rated voltage (II/2) is 320V.
It has 10 positions (positions per level: 10, levels: 1).
Free hanging (in-line) mounting.
Wire range 0.2-1.5mm² (AWG 28-14).
-50°C to 100°C.
0.2-0.25 Nm.
