| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Storage Temperature | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

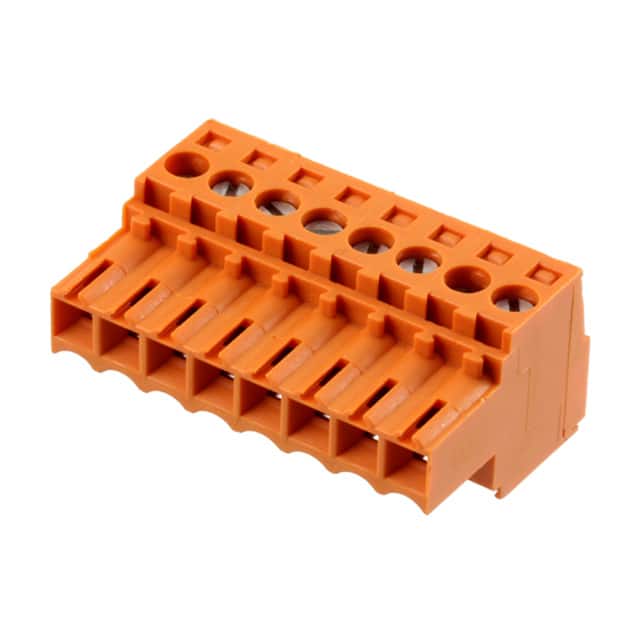

The Weidmüller 1597420000 is a terminal block plug with female sockets, designed for free hanging (in-line) mounting. It features 8 positions arranged in a single level with a 3.50mm pitch. The termination style is screw clamping yoke (tension sleeve), providing reliable wire connections for solid or stranded conductors.
Electrical ratings include 10A current and 300V voltage, with an operating temperature range of -50°C to 100°C. The wire range accepted is 0.2-1.5mm². The contact mating finish is tin, and the housing is orange.
This plug is suitable for use in industrial control panels, power distribution, and signal interconnection applications where a compact, reliable pluggable connection is required. The 180° wire entry simplifies wiring in tight spaces.
It has 8 positions arranged in a single level.
The pitch is 3.50mm.
Rated 10A and 300V.
Screw - Clamping Yoke (Tension Sleeve) termination.
Free Hanging (In-Line) mounting.
Accepts 0.2-1.5mm² wire.
-50°C to 100°C.
