Mfr Part #:

1597390000

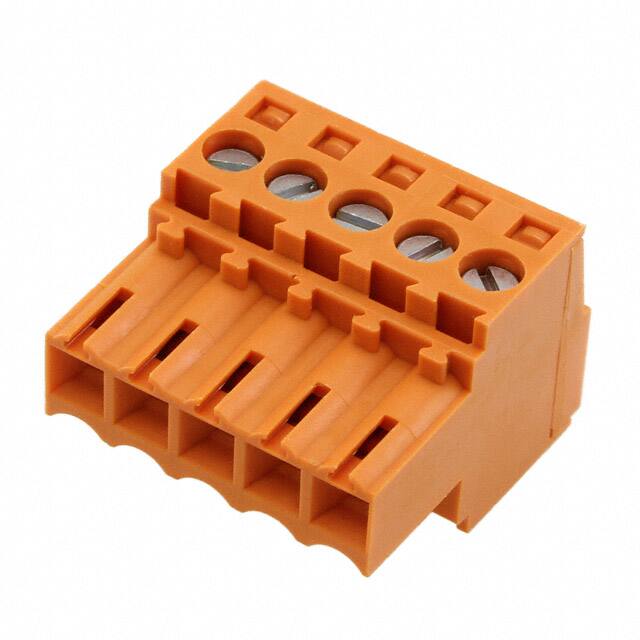

Weidmüller 1597390000 is a 5-position 3.5mm pitch plug with female sockets, featuring screw clamp termination for free hanging (in-line) mounting. Rated at 300V and 10A, it accepts 0.2-1.5 mm² wire.

✓ Total Stock: 5 pcs

1597390000 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	5 pcs On Request	5 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

1597390000 Description

Short technical summary and product information.

The Weidmüller 1597390000 (BL 3.5/5 SN OR) is a 5-position plug connector with female sockets, designed for 3.50mm pitch applications. It uses a clamping yoke (screw) termination system for reliable conductor connections. The plug is rated for 300V (UL/CSA) and 10A (UL/CSA), with higher current ratings possible at lower ambient temperatures (up to 17A at 20°C depending on pin count). It accepts wire sizes from 0.08 mm² to 1.5 mm² (AWG 28-14) with a stripping length of 6mm and requires a tightening torque of 0.2-0.25 Nm.

The plug features a free hanging (in-line) mounting style, making it suitable for applications where a fixed header is not required. The housing is made of orange PBT (polybutylene terephthalate) with a flammability rating of UL 94 V-0 and a CTI of ≥200. Contacts are copper alloy with a tin plating. The operating temperature range is -50°C to 100°C.

This connector is part of the BL 3.5/180 series and is commonly used in industrial control, building automation, and power distribution systems. The standard package quantity is 50 pieces.

1597390000 Quick Information

Product Type: Plug, Female Sockets

Series: BL 3.5/180

Canonical Name: Weidmüller BL 3.5/5 SN OR 5 Position 3.5mm Plug, Female Sockets

Subcategory: Headers, Plugs and Sockets

1597390000 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

1597390000 Features

5 positions with 3.50mm pitch spacing.
Screw clamp termination for secure connections.
Rated for 300V and 10A operation.
Free hanging (in-line) mounting style.
Accepts 0.2 to 1.5 mm² wire gauge.

1597390000 Applications

Used in industrial control panel wiring.
Ideal for sensor and actuator connections.
Suitable for power distribution applications.
Common in building automation systems.

1597390000 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this terminal block plug have?

It has 5 positions.

What is the pitch of this connector?

The pitch is 3.50 mm (0.138 inches).

What is the current rating of this plug?

The UL/CSA rated current is 10 A. At 20°C, the rated current ranges from 12 A (max pins) to 17 A (min pins).

What is the voltage rating?

The UL/CSA rated voltage is 300 V. The rated voltage per IEC (II/2) is 320 V.

What mounting style does this plug use?

It is designed for free hanging (in-line) mounting.

What wire sizes can this connector accommodate?

It accepts solid or flexible wire from 0.2 mm² to 1.5 mm² (AWG 28 to 14), with a clamping range of 0.08-1.5 mm².

What is the operating temperature range?

The operating temperature range is -50°C to 100°C.

Category	Headers, Plugs and Sockets
Manufacturer Name	Weidmüller
Color	Orange
Contact Base Material	Copper alloy
Contact Mating Finish	Tin
Current	10 A
Insulation Material	PBT
Lead Spacing	3.50mm
Lead Style	Screw - Clamping Yoke (Tension Sleeve)
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	5
Operating Temperature	-50°C ~ 100°C
Pitch	3.50mm (0.138")
Plug Wire Entry	180°
Positions Per Level	5
Storage Temperature	-25°C ~ 55°C
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Type	Plug, Female Sockets
Voltage	300 V
Wire Gauge or Range	0.2-1.5 mm²
