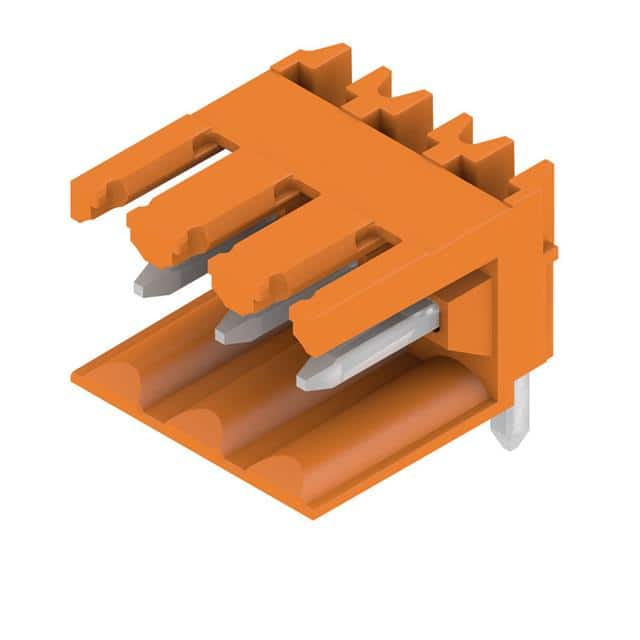

The Weidmüller 1597220000 is a 3-position shrouded header (male pins) from the SL 3.5/90 series, designed for PCB plug-in connector applications. It features a 3.50mm (0.138 inch) pitch, right-angle orientation, and through-hole solder termination. The connector is rated for up to 17A at 20°C (min pins) and 10A at 40°C (max pins), with voltage ratings up to 320V depending on pollution severity.
Constructed with a PBT insulator in orange (RAL 2000), the component meets UL 94 V-0 flammability requirements and provides IP10 electric shock protection. The contacts are made of CuSn with a tin surface finish, and the solder pin length is 3.2mm. It operates continuously from -25°C to +100°C and can be stored between -25°C and +55°C with up to 80% relative humidity.
This connector is suited for industrial control, power distribution, and signal interconnection applications where reliable, polarized connections are required. The 2-side shrouded design provides mechanical protection and keying options.
The pitch is 3.50 mm (0.138 inch).
It has 3 positions (poles).
Through-hole mounting with right-angle (90°) orientation.
Rated current depends on pin count and temperature: 17 A (min pins, 20°C), 12 A (max pins, 20°C), 14.5 A (min pins, 40°C), 10 A (max pins, 40°C).
Rated voltage: 160 V (overvoltage class III/3 and III/2), 320 V (II/2), and 300 V for CSA/UL Use Group D.
The insulating material PBT meets UL 94 V-0 flammability class.
Yes, the 1597220000 can be coded.
