| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Pitch | |
| Positions Per Level | |
| Storage Temperature | |
| Termination Style | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

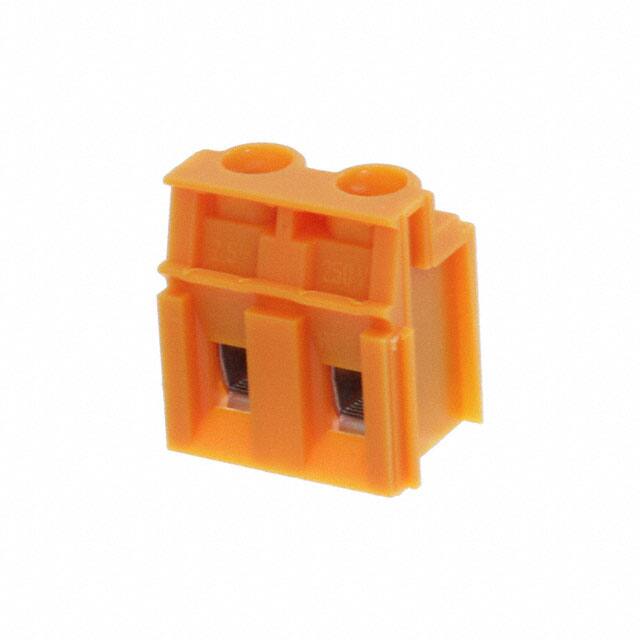

The Weidmüller 1594460000 is a 2 position, single level wire to board terminal block designed for reliable PCB connections. It features a 7.62mm (0.300 inch) pitch and accepts wire gauges from 12 to 26 AWG. The termination uses a screw clamping yoke with tension sleeve for secure wire retention. The mating orientation is horizontal with the board, and the component is mounted via through hole technology. The housing is orange and includes side interlocking features for multi-position assembly. Rated for 20A current and 300V voltage, this terminal block is suitable for power distribution and industrial control applications.
The pitch is 7.62mm (0.300 inches).
It has 2 positions per level with 1 level.
Rated for 20A current and 300V voltage.
Accepts 12 to 26 AWG wire.
Screw - Clamping Yoke, Tension Sleeve termination.
Through hole mounting.
Orange.
