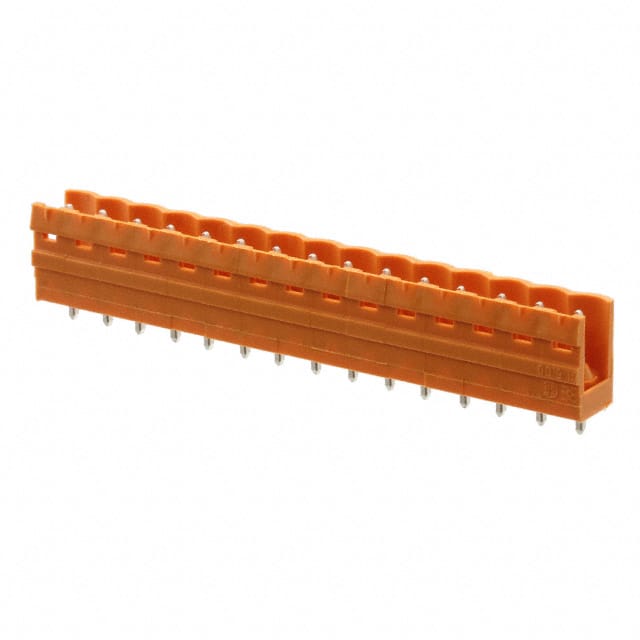

1581450000 Weidmüller 1581450000 is a 15-position, 5.00mm pitch, through hole, vertical header with shrouded male pins. Rated for 300V and 15A.
Mfr Part #:

1581450000

Available from 1 distributors
Mfr Name: Weidmüller
Weidmüller
Weidmüller 1581450000 is a 15-position, 5.00mm pitch, through hole, vertical header with shrouded male pins. Rated for 300V and 15A.
✓ Total Stock: 48 pcs

1581450000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
48 pcs
On Request
48 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1581450000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Mating Finish
Contact Plating
Current
Header Orientation
Industrial Grade
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Number of Rows
Operating Temperature
Pitch
Positions Per Level
Storage Temperature
Tape & Reel
Termination Style
Type
Voltage
View Similar Products (0)

1581450000 Description

Short technical summary and product information.

The Weidmüller 1581450000 is a 15-position header from the SL 5.00/180 series. It features male pins with a shrouded design for two-sided protection. The pitch is 5.00mm, and the mounting is through hole with solder termination. The header is rated for 300V (UL) and 15A (at 40°C). The insulating material is PBT with UL 94 V-0 flammability rating. The contact material is copper-tin with tin plating. The constant operating temperature range per datasheet is -25°C to 100°C. The header is vertical orientation and has a solder pin length of 3.2mm. It is suitable for PCB plug-in connector systems. The standard package quantity is 50 pieces.

1581450000 Quick Information

Product Type: Header, Male Pins, Shrouded
Series: SL 5.00
Canonical Name: Weidmüller SL 5.00/15/180 3.2SN OR Header, Male Pins, Shrouded, 15 Positions, 5.00mm Pitch, Through Hole, Vertical
Subcategory: Shrouded Header

1581450000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1581450000 Features

  • 15 positions with 5.00mm pitch.
  • Through hole solder mounting.
  • Vertical orientation with shrouded design.
  • Rated for 300V and 15A.
  • UL 94 V-0 flammability rated.

1581450000 Applications

  • Used in PCB terminal block connections.
  • Suitable for industrial control systems.
  • Ideal for power distribution applications.

1581450000 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Weidmüller 1581450000 have?

The header has 15 positions.

What is the pitch of the 1581450000?

The pitch is 5.00mm (0.197 inches).

What is the current rating?

The header is rated at 15A at 40°C (minimum) with a maximum of 12A at 40°C; at 20°C the rating is 18A (minimum) to 14.5A (maximum).

What is the voltage rating?

The UL rating is 300V. For overvoltage class/pollution severity III/3 it is 250V, III/2 is 320V, and II/2 is 400V.

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

The constant operating temperature range is -25°C to 100°C per datasheet.

What is the flammability rating?

The insulating material meets UL 94 V-0.
