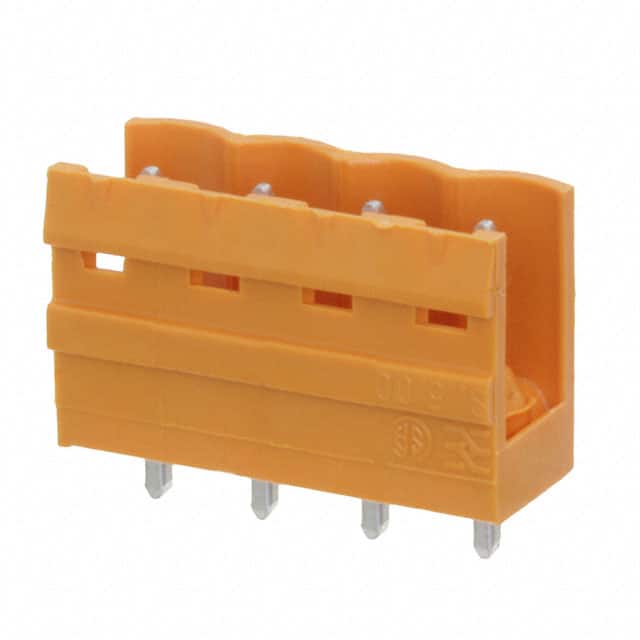

Weidmüller 1581340000 is a 4-position, 5.00mm pitch PCB plug-in connector header with male pins, shrouded on 2 sides, vertical orientation, through hole solder termination, and tin contacts.

✓ Total Stock: 6,500 pcs

1581340000 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	6,500 pcs On Request	6500 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

1581340000 Description

Short technical summary and product information.

The Weidmüller 1581340000 (SL 5.00/4/180 3.2SN OR) is a 4-position PCB plug-in connector header designed for through hole soldering. It features a 5.00mm pitch, vertical orientation, and a shrouded (2 side) design for secure mating. The header is rated for 300V and 15A, with tin-plated copper-tin contacts and a PBT insulating material rated UL 94 V-0.

This connector is part of the SL 5.00/180 series and is suitable for use in industrial control, power distribution, and building automation applications. It supports a rated voltage of 300V (UL/CSA Use Group D) and a rated current of 10A under UL/CSA conditions. The operating temperature range is -25°C to 100°C, with a storage temperature range of -25°C to 55°C.

The header is packaged in a box of 100 pieces. It is designed for solder connection to a PCB and can be coded for keyed mating. The insulating material is PBT with a flammability rating of UL 94 V-0.

1581340000 Quick Information

Product Type: Header, Male Pins, Shrouded (2 Side)

Series: SL 5.00

Canonical Name: Weidmüller SL 5.00/4/180 3.2SN OR PCB Plug-in Connector, Header, Male Pins, Shrouded (2 Side), 4 Position, 5.00mm Pitch, Through Hole, Solder, Vertical, Tin, Orange

Subcategory: Header, Male Pins, Shrouded (2 Side)

1581340000 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

1581340000 Features

4 positions with 5.00mm pitch spacing.
Through hole solder termination with 3.2mm pin length.
Rated for 300V and 15A (IEC).
UL 94 V-0 flammability rated PBT insulator.
Tin-plated copper-tin contacts for reliable connection.

1581340000 Applications

Ideal for PCB-to-wire connections in control panels.
Used in power distribution and industrial automation.
Suitable for building automation and lighting systems.
Can be coded for keyed mating to prevent misinsertion.

1581340000 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the pitch of this header?

The pitch is 5.00mm (0.197 inches).

What is the current rating of this connector?

The rated current is 15A (IEC) and 10A (UL/CSA Use Group D).

What is the voltage rating?

The rated voltage is 300V (UL/CSA Use Group D) and 300V (IEC).

What mounting type does this header use?

Through hole solder termination.

What is the operating temperature range?

-25°C to 100°C constant operating temperature.

What is the insulating material and flammability rating?

PBT insulating material with UL 94 V-0 flammability class.

Can this header be coded for keyed mating?

Yes, the header can be coded.

Category	Headers, Plugs and Sockets
Manufacturer Name	Weidmüller
Color	Orange
Contact Base Material	CuSn
Contact Mating Finish	Tin
Current	15 A
Header Orientation	Vertical
Lead Spacing	5.0 mm
Lead Style	Solder
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	4
Operating Temperature	-25°C ~ 100°C
Pitch	5.00mm (0.197")
Positions Per Level	4
Storage Temperature	-25°C ~ 55°C
Termination Style	Solder
Type	Header, Male Pins, Shrouded (2 Side)
Voltage	300 V
