| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

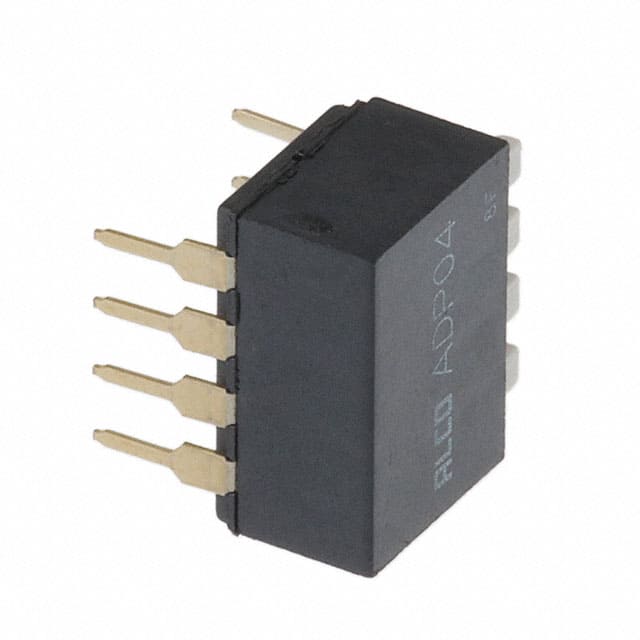

This TE Connectivity 1571999-6 is a Piano DIP Switch designed for through-hole mounting at a right angle. It offers 4 positions with SPST (Single Pole, Single Throw) circuitry, a contact rating of 25mA at 24VDC, and gold-plated copper alloy contacts.
The switch operates within a temperature range of -30°C to 85°C and has a pitch of 2.54mm. Its actuator is raised and washable, making it suitable for various environmental conditions. The component is RoHS3 Compliant and has an MSL 1 rating.
Key specifications include a height above board of 7.30mm and a termination style of PC Pin. This DIP switch is ideal for applications requiring reliable manual input and switching in a compact form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the 1571999-6 DIP switch is 24VDC.
This DIP switch operates in a temperature range of -30°C to 85°C.
The TE Connectivity 1571999-6 is RoHS3 Compliant.
