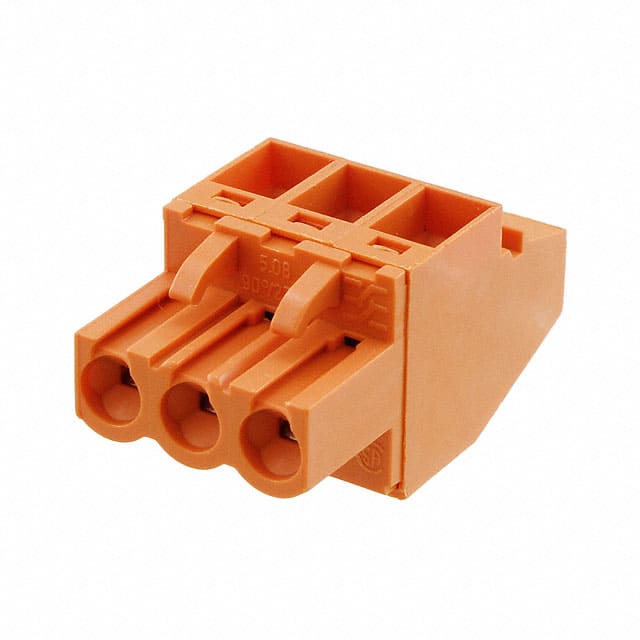

1552860000 Weidmüller 1552860000 is a 3-position terminal block plug with 5.08mm pitch, featuring screw-clamp yoke termination and free hanging mounting. It is rated for 10A at 300V (UL/CSA) and accepts 0.2-2.5mm² wire.
Mfr Part #:

1552860000

Available from 1 distributors
Mfr Name: Weidmüller
Weidmüller
Weidmüller 1552860000 is a 3-position terminal block plug with 5.08mm pitch, featuring screw-clamp yoke termination and free hanging mounting. It is rated for 10A at 300V (UL/CSA) and accepts 0.2-2.5mm² wire.
✓ Total Stock: 100 pcs

1552860000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1552860000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Base Material
Contact Mating Finish
Current
Features
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1552860000 Description

Short technical summary and product information.

The Weidmüller 1552860000 (BLZ 5.08/3/90 SN OR) is a 3-position PCB plug-in connector with female sockets and a 5.08mm pitch. It features a clamping yoke (tension sleeve) screw termination system, designed for free hanging (in-line) mounting. The connector accepts wire sizes from 0.2 to 2.5 mm² (26-12 AWG) and requires a stripping length of 7 mm. Tightening torque is 0.4-0.5 Nm using a 0.6 x 3.5 mm screwdriver. The orange PBT housing is rated UL 94 V-0 for flammability. Electrical ratings include 10 A at 300 V (UL/CSA Use Group D) and up to 15 A at 20°C per IEC standards. The connector is suitable for industrial control and power distribution applications. It is supplied in quantities of 120 pieces.

1552860000 Quick Information

Product Type: Terminal Block Plug
Series: BLZ
Canonical Name: Weidmüller BLZ 5.08/3/90 SN OR PCB Plug-in Connector, 3 Position, 5.08mm Pitch
Subcategory: Female Sockets

1552860000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1552860000 Features

  • 3-position female socket plug with 5.08mm pitch.
  • Screw-clamp yoke termination for secure wire connection.
  • Rated 10A at 300V (UL/CSA Use Group D).
  • Accepts 0.2-2.5mm² solid or flexible wire.
  • Orange PBT housing with UL 94 V-0 flammability rating.

1552860000 Applications

  • Used in industrial control panel wiring.
  • Suitable for power distribution in terminal blocks.
  • Ideal for free-hanging cable-to-board connections.
  • Common in automation and machinery applications.

1552860000 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

3 positions.

What is the pitch of this terminal block?

5.08 mm (0.200 inches).

What is the current rating?

10 A (UL/CSA Use Group D) and up to 15 A at 20°C (IEC).

What is the voltage rating?

300 V (UL/CSA Use Group D) and up to 400 V (IEC overvoltage class II/2).

What type of termination does it use?

Screw - Clamping Yoke (Tension Sleeve).

What wire sizes are accepted?

0.2 to 2.5 mm² (26 to 12 AWG).

What is the operating temperature range?

-50°C to 100°C.
