| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
89 pcs
|
89 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AWG Range | |
| Clamping Range | |
| Color | |
| Contact Base Material | |
| Contact Mating Finish | |
| Contact Surface | |
| Current | |
| Features | |
| Flammability Class | |
| Insulating Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Rated Current (Tu=20°C) (Minimum/Maximum) | |
| Rated Current (Tu=40°C) | |
| Rated Impulse Withstand Voltage | |
| Rated Voltage (II/2) | |
| Rated Voltage (III/2) | |
| Rated Voltage (III/3) | |
| Short-Time Withstand Current | |
| Standard Package Qty | |
| Stripping Length | |
| Termination Style | |
| Tightening Torque | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

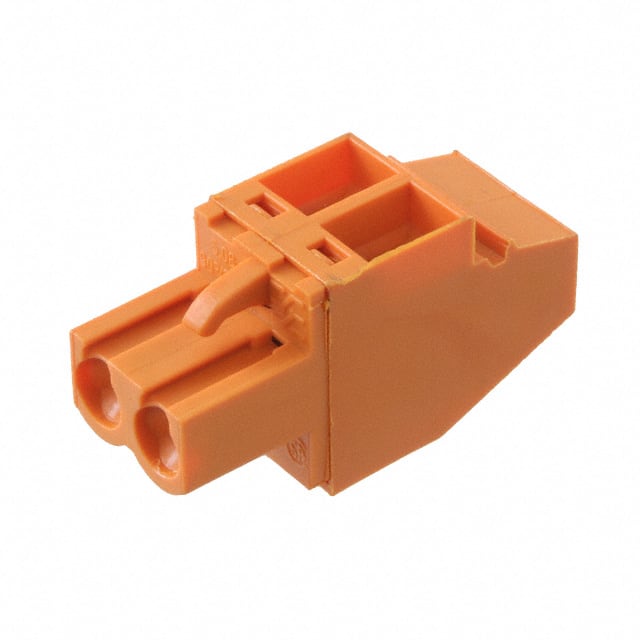

The Weidmüller 1552760000 (BLZ 5.08/2/90 SN OR) is a 2-position female plug connector designed for use in terminal block systems. It uses a clamping yoke (screw clamp) termination for secure wire connections and features a 90° wire entry. The plug is rated for a continuous current of 10A at 300V and accepts wire sizes from 0.13 to 3.31 mm² (12-26 AWG). The contact surface is tin-plated copper alloy, and the insulator is made of orange PBT, meeting UL 94 V-0 flammability requirements. The operating temperature range is -50°C to 100°C. Retention latches on the wire side provide secure mating. This plug is intended for free hanging (in-line) mounting and is commonly used in industrial control panels, automation systems, and power distribution applications.
This plug has 2 positions.
The pitch is 5.08mm (0.200 inches).
The continuous current rating is 10A, with higher ratings possible at lower temperatures (up to 15A at 20°C).
The voltage rating is 300V, with higher ratings depending on pollution degree (up to 400V for II/2).
The mounting type is free hanging (in-line).
It supports wire sizes from 12 to 26 AWG (0.13 to 3.31 mm²).
The operating temperature range is -50°C to 100°C.
