| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Base Material | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

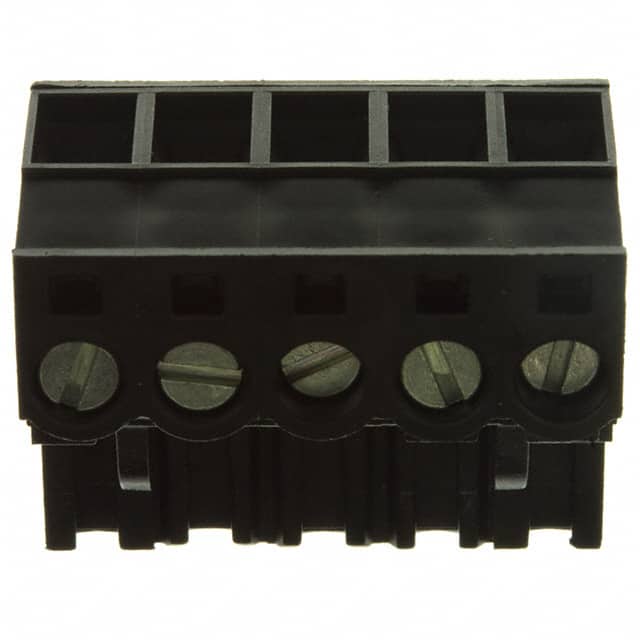

The Weidmüller 1526710000 (BLZ 5.08/5 SN SW) is a 5-position PCB plug-in connector with a 5.08mm pitch. It features a female socket design with screw (clamping yoke) termination, accepting wire sizes from 0.2 to 2.5 mm² (AWG 26-12). The connector is rated for 15A at 300V and is suitable for free hanging (in-line) mounting.
This plug uses a clamping yoke connection system with a 180° wire entry. The insulating material is PBT (UL 94 V-0), and contacts are copper alloy with a tin mating finish. It includes retention latches on the non-wire side for secure mating. The operating temperature range is -50°C to 100°C.
Typical applications include industrial control panels, power distribution, and building automation where reliable screw-clamp terminations are required. The 5.08mm pitch is standard for many terminal block systems.
5.08 mm
5 positions
15 A (UL/CSA), 14.5 A at 20°C (IEC, max pins)
300 V (UL/CSA), up to 400 V (IEC II/2)
Free hanging (in-line)
0.2 to 2.5 mm² solid or flexible wire (AWG 26-12)
-50°C to 100°C
