| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Features | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Screw Size | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge or Range |

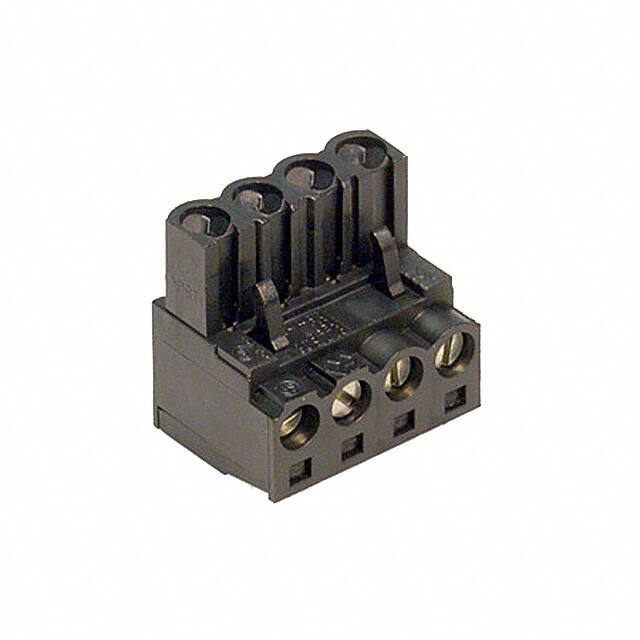

The Weidmüller BLZ 5.08/4 SN SW is a 4-position terminal block plug designed for use with matching headers in PCB connection systems. It features a 5.08mm pitch, providing a compact and standardized pin spacing for industrial control and automation wiring.
Termination is via a screw clamp (clamping yoke) mechanism, which ensures secure and vibration-resistant connections for solid and stranded wires. The plug accepts wire sizes from 0.2 to 2.5 mm² (26-12 AWG) with a stripping length of 7 mm and a tightening torque of 0.4-0.5 Nm. The 180° wire entry direction simplifies routing in confined spaces.
Constructed with PBT insulation (UL 94 V-0) and copper alloy contacts with tin plating, the plug offers good electrical performance and environmental resistance. It is rated for 15 A and 300 V (UL/CSA) and meets IP20 protection against finger contact. The operating temperature range is -50°C to 100°C, making it suitable for harsh environments.
Mounting is free hanging (in-line), and the plug includes retention latches on the non-wire side for secure mating to the header. The standard package quantity is 100 pieces per box, with an EAN of 4008190049454.
4 positions.
5.08 mm.
The CSA/UL rated current is 10 A; the IEC rated current is 19 A at 20°C.
300 V (UL/CSA) or 400 V/320 V/250 V (IEC depending on pollution degree).
Free hanging (in-line) with 180° wire entry.
0.2-2.5 mm² (26-12 AWG) solid or flexible, with a stripping length of 7 mm.
-50°C to 100°C.
