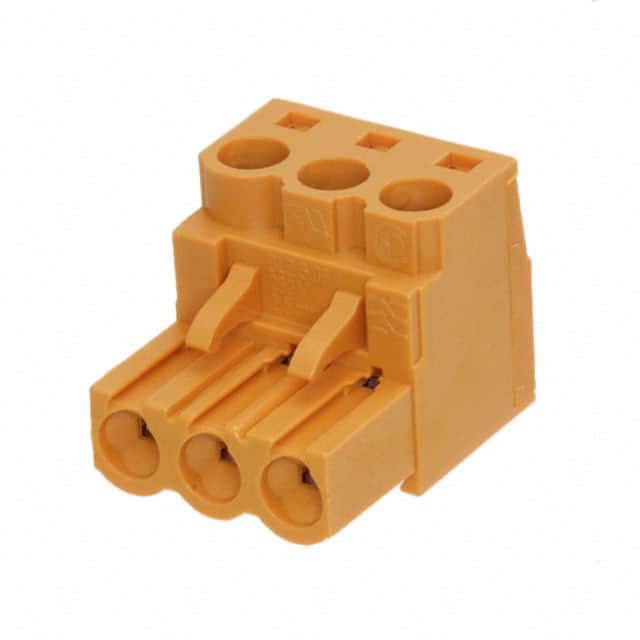

1526560000 Weidmüller 1526560000 is a 3 position plug terminal block with 5.08mm pitch, rated for 15A and 300V. It features screw clamp termination and free hanging mounting.
Mfr Part #:

1526560000

Available from 1 distributors
Mfr Name: Weidmüller
Weidmüller
Weidmüller 1526560000 is a 3 position plug terminal block with 5.08mm pitch, rated for 15A and 300V. It features screw clamp termination and free hanging mounting.
✓ Total Stock: 19 pcs

1526560000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
19 pcs
On Request
19 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1526560000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Plug Wire Entry
Positions Per Level
Storage Temperature
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1526560000 Description

Short technical summary and product information.

This is a 3-position plug terminal block from Weidmüller, part number 1526560000. It features female socket contacts and is designed for free hanging (in-line) mounting. The pitch is 5.08mm, making it suitable for standard spacing requirements.



Electrical ratings include 15A current and 300V voltage. The operating temperature range is -50°C to 100°C. Wire gauge range is 0.2-2.5mm². Termination is via screw clamping yoke (tension sleeve) with 180° wire entry.



The plug includes retention latches on the non-wire side for secure mating. Contact mating finish is tin. The housing color is orange. This component is RoHS3 compliant (unverified) and has MSL 1 unlimited.

1526560000 Quick Information

Product Type: Terminal Block Plug
Series: OMNIMATE Signal - series BL/SL 5.08
Canonical Name: Weidmüller 1526560000 - 3 Position 5.08mm Plug, Female Sockets Terminal Block
Subcategory: Headers, Plugs and Sockets

1526560000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1526560000 Features

  • 3 positions with 5.08mm pitch spacing.
  • Rated for 15A current and 300V voltage.
  • Screw clamp termination with clamping yoke.
  • Free hanging (in-line) mounting style.
  • Retention latches for secure connection.

1526560000 Applications

  • Used in industrial control panel wiring.
  • Suitable for power distribution applications.
  • Ideal for sensor and actuator connections.
  • Applicable in building automation systems.

1526560000 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1526560000 have?

3 positions.

What is the pitch of this terminal block?

5.08mm.

What is the current rating?

15A.

What is the voltage rating?

300V.

What is the mounting type?

Free hanging (in-line).

What wire gauge range is supported?

0.2-2.5mm².

What is the operating temperature range?

-50°C to 100°C.
