| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
95 pcs
|
95 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request | |
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

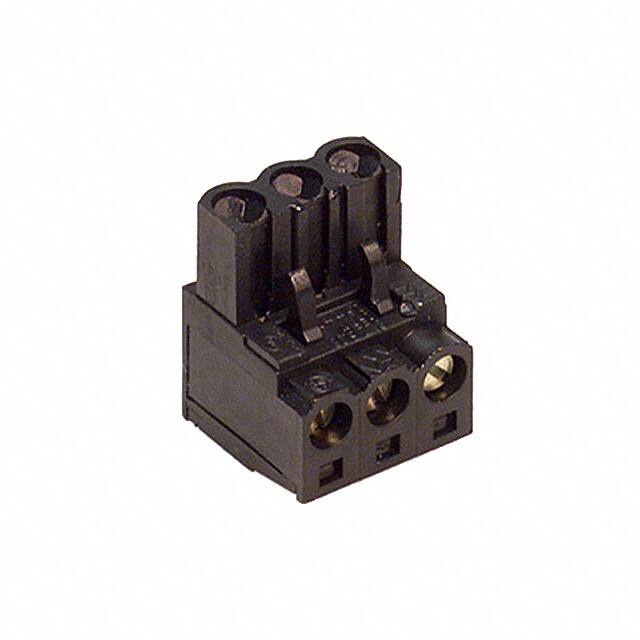

The Weidmüller 1526510000 is a 3-position terminal block plug designed for wire-to-wire or wire-to-header connections. It features female socket contacts with a 5.08mm pitch, allowing for a compact form factor while maintaining a 15A current rating and 300V voltage rating. The termination style is a Screw - Clamping Yoke (Tension Sleeve), which provides a secure and reliable connection for solid or stranded wires from 0.2 to 2.5 mm².
The plug has a free hanging (in-line) mounting type with a 180° wire entry, simplifying installation in tight spaces. It includes retention latches on the non-wire side to ensure a secure mating with the header. The contacts have a tin mating finish, and the housing is black.
This product is suitable for use in industrial control panels, automation equipment, and power distribution applications. The operating temperature range is -50°C to 100°C, supporting a wide variety of environmental conditions.
This plug has 3 positions (1 level, 3 positions per level).
The pitch is 5.08mm (0.200 inches).
The current rating is 15A and the voltage rating is 300V.
It uses screw - clamping yoke termination and is free hanging (in-line) mounted.
It accepts wires from 0.2 to 2.5 mm².
The operating temperature range is -50°C to 100°C.
