| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,400 pcs
|
1400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
56 pcs
|
56 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| SVHC Present | |
| Storage Temperature | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge Range | |
| Wire Gauge or Range |

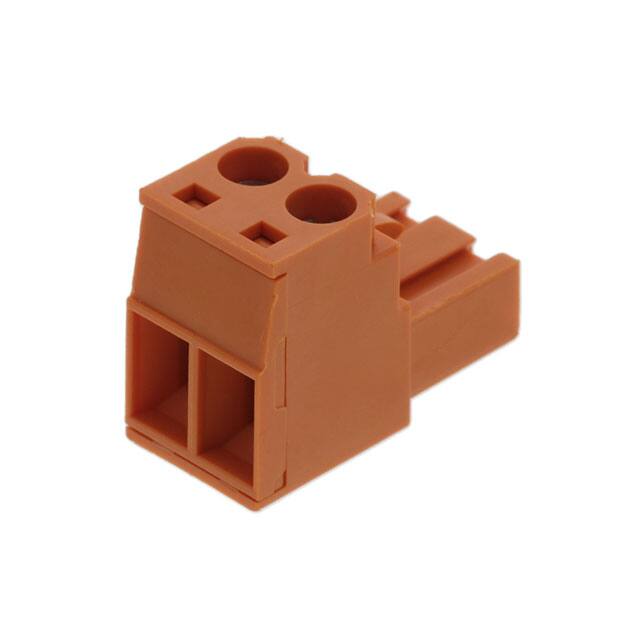

The Weidmüller 1526460000 is a 2-position plug terminal block with female sockets, designed for reliable wire connections in industrial control systems. It features a 5.08mm pitch and accepts wire sizes from 0.2 to 2.5mm² using a screw-clamping yoke (tension sleeve) termination. The plug is rated for 15A and 300V, with an operating temperature range of -50°C to 100°C. It is orange in color with tin-plated contacts and includes retention latches on the non-wire side for secure mating. The free hanging (in-line) mounting style allows flexible installation without a mounting rail. This plug is suitable for use with corresponding headers in terminal block systems.
2 positions.
5.08mm (0.200").
15A.
300V.
Free Hanging (In-Line).
0.2-2.5mm².
Screw - Clamping Yoke (Tension Sleeve).
