| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
78 pcs
|
78 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clamping Range, Rated Connection, Max | |
| Color | |
| Contact Material | |
| Contact Mating Finish | |
| Contact Surface | |
| Current | |
| Features | |
| Flammability Rating | |
| Insulating Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Net Weight | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Quantity | |
| Rated Current (IEC) | |
| Rated Current (UL) | |
| Rated Voltage (IEC) | |
| Rated Voltage (UL) | |
| Stripping Length | |
| Termination Style | |
| Tightening Torque | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

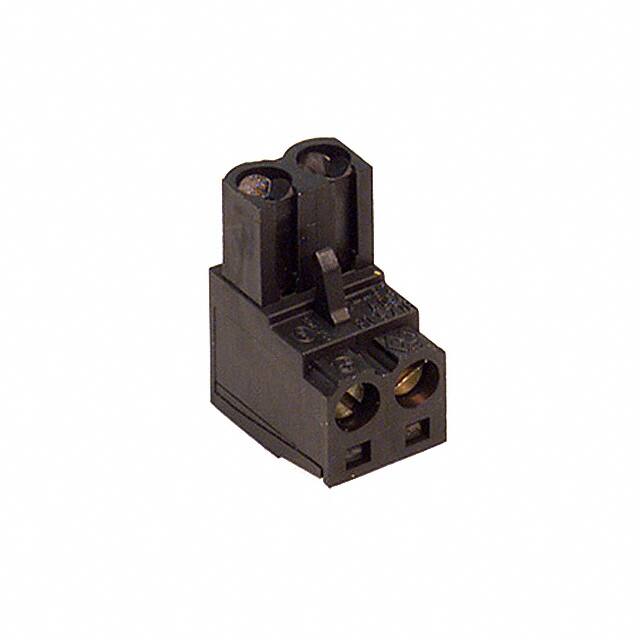

The Weidmüller BLZ 5.08/02/180 SN BK BX (order number 1526410000) is a 2-position plug with female sockets designed for use in terminal block applications. It features a clamping yoke (tension sleeve) termination style and straight (180°) wire entry, making it suitable for in-line mounting.
Electrical ratings include 15A at 300V (UL) and 19A at 400V (IEC). The plug accepts wire sizes from 0.2 to 2.5mm² (AWG 26-12) and has a stripping length of 7mm. The tightening torque range is 0.4-0.5 Nm.
Constructed from PBT insulating material with tin-plated copper alloy contacts, the plug has a flammability rating of V-0 (UL 94). It includes retention latches on the non-wire side and is colored black (RAL 9011). The operating temperature range is -50°C to 100°C.
This plug has 2 positions (poles).
The pitch is 5.08mm (0.200").
The UL rated current is 15A and the IEC rated current is 19A.
The UL rated voltage is 300V and the IEC rated voltage is 400V.
The mounting type is Free Hanging (In-Line).
It accepts wire sizes from 0.2 to 2.5mm² (AWG 26-12).
The operating temperature range is -50°C to 100°C.
