| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Header Orientation | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Solder Pin Length | |
| Storage Temperature | |
| Termination Style | |
| Type | |
| Voltage |

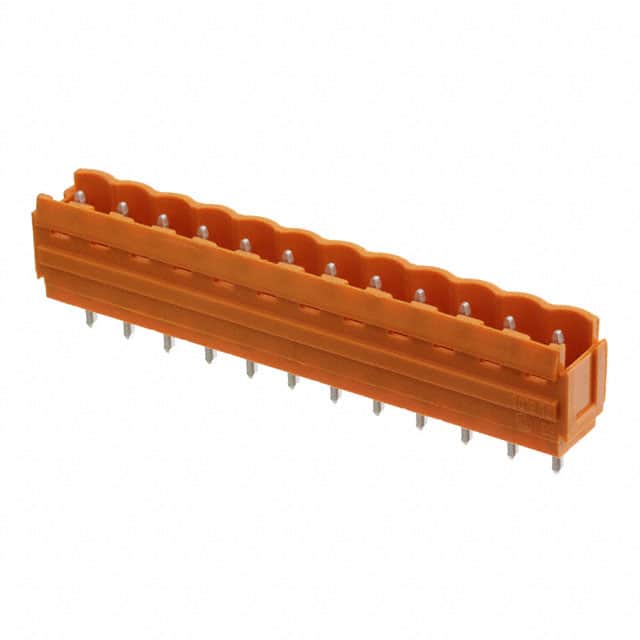

The Weidmüller 1525160000 is a 12-position, single-level shrouded header from the SL 5.08 series. It features a vertical orientation with through-hole solder termination and a 5.08mm pitch. The header is rated for 15A current and 300V voltage, with an operating temperature range of -20°C to 100°C. The orange housing and tin-plated contact mating finish make it suitable for industrial terminal block applications. The solder pin length is 4.5mm. This part is designed for use with mating plugs in wire-to-board connection systems.
12 positions in a single level.
5.08mm (0.200 inches).
15A and 300V.
Through-hole with solder termination.
-20°C to 100°C.
