| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Header Orientation | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Solder Pin Length | |
| Standard Package Qty | |
| Termination Style | |
| Type | |
| Voltage |

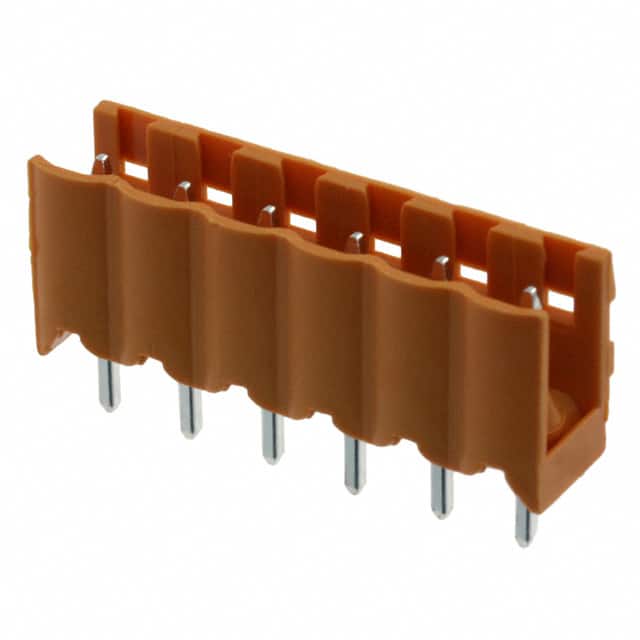

The Weidmüller 1522260000 is a 6-position terminal block header with a 5.08mm pitch. It features a vertical orientation and through hole mounting for secure PCB attachment. The header has male pins with a tin mating finish and a 2-side shrouded design for enhanced protection.
Rated for 300V and 15A, this connector is suitable for power and signal applications. The operating temperature range is -20°C to 100°C, making it reliable in various environments. The solder pin length is 4.5mm, and the header comes in an orange housing.
This part is part of Weidmüller's SL 5.08 series and is supplied in standard packaging of 50 pieces. It is RoHS3 compliant and has an MSL of 1 (unlimited).
6 positions.
5.08mm (0.200").
15A.
300V.
Through Hole.
-20°C to 100°C.
Solder.
