| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
95 pcs
|
95 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Header Orientation | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Solder Pin Length | |
| Termination Style | |
| Type | |
| Voltage |

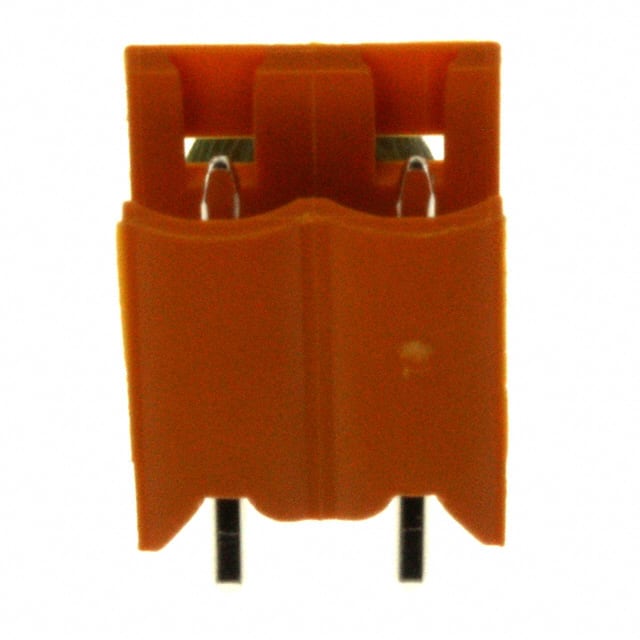

The Weidmüller 1521860000 is a 2-position terminal block header from the SL 5.08 series. It features a vertical orientation with male pins shrouded on two sides, designed for through hole soldering. The pitch is 5.08mm (0.200 inches), and the header is rated for 15A current and 300V voltage.
This header is suitable for wire-to-board connections in industrial control, automation, and power distribution applications. The orange housing provides visual identification, and the tin-plated contacts ensure reliable solder joints. The operating temperature range is -20°C to 100°C.
The component is RoHS3 compliant and has an MSL rating of 1 (unlimited). It is packaged in bulk with a standard quantity of 100 pieces per package.
The 1521860000 has 2 positions.
The pitch is 5.08mm (0.200 inches).
The current rating is 15A.
The voltage rating is 300V.
It uses through hole mounting with solder termination.
The operating temperature range is -20°C to 100°C.
The housing is orange.
