| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22 pcs
|
22 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

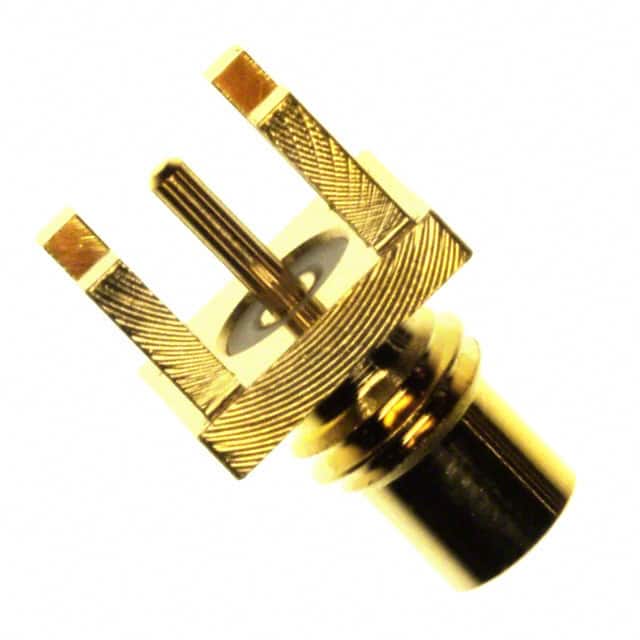

The 152119 is an SMC-style coaxial connector from Amphenol RF, featuring a jack, male pin configuration. It is designed for 50 Ohm characteristic impedance and supports frequencies up to 10 GHz, making it suitable for RF signal transmission applications.
This connector uses a threaded fastening mechanism for secure coupling and is mounted via through hole to a PCB. Both the center contact and shield are terminated with solder, ensuring reliable electrical connections. The center contact is made of brass, and the housing is finished in silver.
With a single port design, the 152119 is a compact and durable solution for RF connectivity. It is commonly used in telecommunications, instrumentation, and other high-frequency systems where reliable signal integrity is required.
Through hole.
50 Ohm.
10 GHz.
SMC.
Threaded.
Solder.
RoHS3 Compliant (unverified).
