| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Header Orientation | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Solder Pin Length | |
| Termination Style | |
| Type | |
| Voltage |

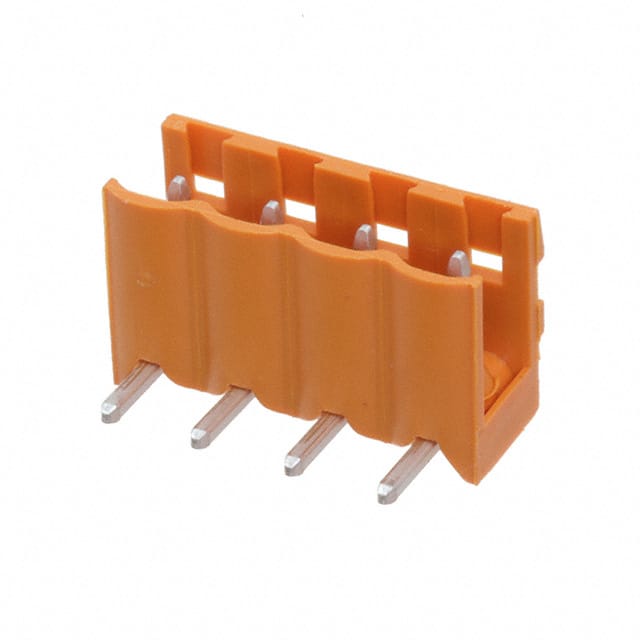

The Weidmüller 1512860000 is a terminal block header from the SL 5.08 series. It features 4 positions arranged in a single level with a 5.08mm pitch. The header has male pins with a shrouded (2 side) design and a right angle (90°) orientation for space-saving PCB mounting. It is rated for 300V and 15A, with an operating temperature range of -20°C to 100°C. The termination style is solder with a solder pin length of 4.5mm. The contact mating finish is tin. The housing is orange. This through-hole component is suitable for wire-to-board connections in industrial control and automation applications.
4 positions.
5.08mm (0.200 inches).
15 A.
300 V.
Through hole.
90°, right angle.
-20°C to 100°C.
