| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
89 pcs
|
89 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Header Orientation | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Storage Temperature | |
| Termination Style | |
| Type | |
| Voltage |

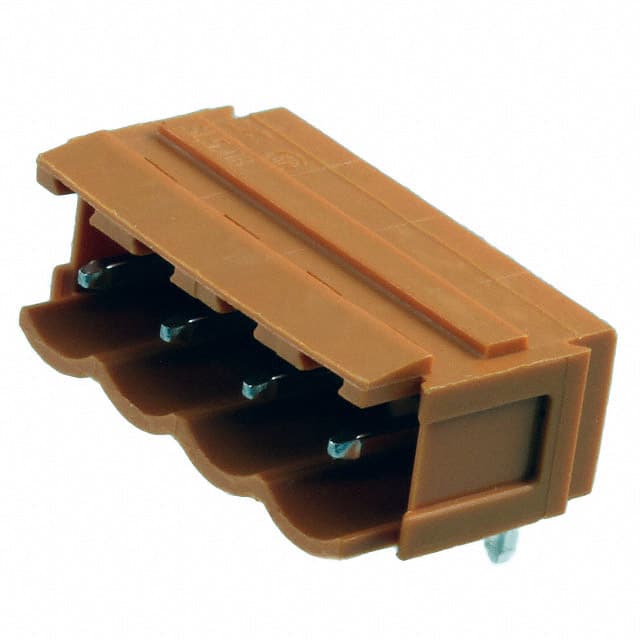

The Weidmüller 1510560000 is a 4-position, single-level shrouded header designed for use in terminal block interconnect systems. It features a 5.08mm pitch and a right-angle orientation, making it suitable for compact PCB layouts where space is constrained. The header has male pins with a tin contact mating finish, ensuring reliable electrical connections.
Rated for 15A current and 300V voltage, this component can handle moderate power levels in industrial control and automation equipment. Its operating temperature range of -50°C to 100°C allows use in harsh environments. The through-hole mounting style with solder termination provides robust mechanical attachment to the PCB.
The orange color of the housing aids in visual identification. As a shrouded header, it offers protection against accidental contact and helps guide mating connectors. This part is commonly used in applications such as programmable logic controllers (PLCs), power supplies, and industrial sensors.
4 positions.
5.08mm (0.200 inches).
15A.
300V.
Through hole.
90°, right angle.
-50°C to 100°C.
