1508060000 Weidmüller SL 5.08/02/90 3.2SN OR BX is a 2-position, 5.08mm pitch, right angle male header with solder termination, rated 300V/15A (UL) and 400V/18A (IEC).
Mfr Part #:

1508060000

Available from 1 distributors
Mfr Name: Weidmüller
Weidmüller
Weidmüller SL 5.08/02/90 3.2SN OR BX is a 2-position, 5.08mm pitch, right angle male header with solder termination, rated 300V/15A (UL) and 400V/18A (IEC).
✓ Total Stock: 95 pcs

1508060000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
95 pcs
On Request
95 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1508060000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Contact Material
Contact Mating Finish
Current
Header Orientation
Industrial Grade
Insulation Resistance
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
SVHC Present
Storage Temperature
Termination Style
Type
Voltage
View Similar Products (0)

1508060000 Description

Short technical summary and product information.

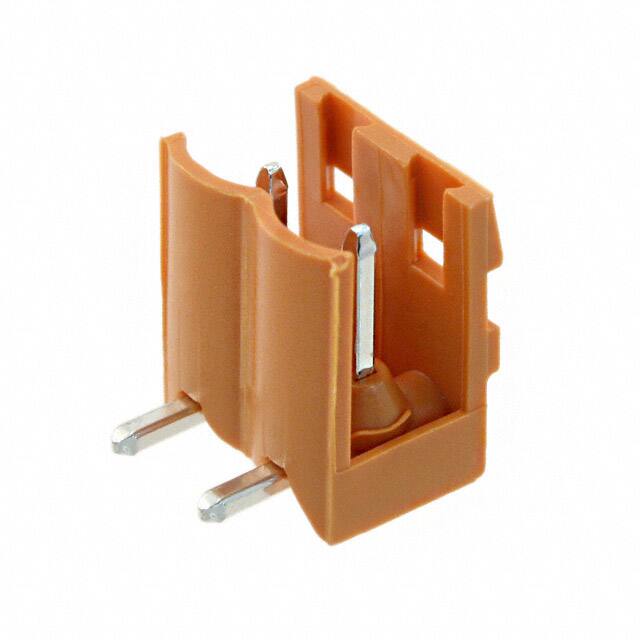

The Weidmüller 1508060000 is a 2-position PCB plug-in connector male header from the SL series. It features a 5.08mm pitch and a 90° right angle orientation for through-hole solder mounting. The header is shrouded on two sides and has a solder pin length of 3.2mm with a 1.3mm diameter solder eyelet.



Electrical ratings include 300V/15A (UL) and 400V/18A (IEC), with a rated impulse withstand voltage of 4kV. The insulating material is orange PBT with a flammability class of UL 94 V-0 and a CTI of ≥200. Contact material is CuSn with a tin mating finish.



The operating temperature range is -25°C to 100°C per the datasheet. The header can be coded for keying and is supplied in a box of 100 pieces. It is designed for use in terminal block interconnect applications requiring a reliable solder connection.

1508060000 Quick Information

Product Type: Header, Male Pins, Shrouded
Series: 5.08/02/90
Canonical Name: Weidmüller SL 5.08/02/90 3.2SN OR BX - 2 Position 5.08mm Right Angle Header, Male Pins, Shrouded
Subcategory: Headers, Plugs and Sockets

1508060000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1508060000 Features

  • 2 position 5.08mm pitch right angle header.
  • Rated 300V/15A UL and 400V/18A IEC.
  • Through hole solder termination with 3.2mm pin length.
  • Orange PBT insulator, UL 94 V-0 flammability class.
  • Tin plated CuSn contacts for reliable connection.

1508060000 Applications

  • Used in PCB terminal block interconnect systems.
  • Suitable for industrial control and automation equipment.
  • Ideal for power distribution and signal wiring applications.

1508060000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of this header?

The pitch is 5.08mm (0.200 inches).

What is the voltage rating?

UL rated 300V, IEC rated 400V.

What is the current rating?

UL rated 15A, IEC rated 18A at 20°C.

What is the mounting type?

Through hole, right angle (90°) orientation.

How many positions does this header have?

2 positions.

What is the operating temperature range?

-25°C to 100°C per the datasheet.

What is the flammability class of the insulator?

UL 94 V-0.
