| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,600 pcs
|
4600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| 1st Connector | |
| 1st Connector Mounting Type | |
| 1st Contact Gender | |
| 2nd Connector | |
| 2nd Connector Mounting Type | |
| 2nd Contact Gender | |
| Approval Agency | |
| Cable Impedance | |
| Cable Type | |
| Color | |
| Features | |
| Frequency Range | |
| Hi-Pot Voltage | |
| Length | |
| Overall Impedance | |
| Packaging Quantity | |
| Packaging Type | |
| SVHC Present | |
| Style | |
| Tape & Reel |

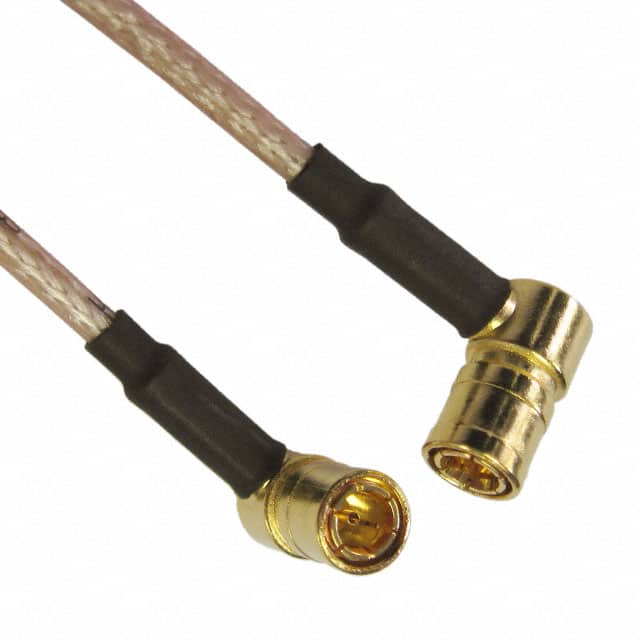

The Amphenol RF 145104-01-06.00 is a coaxial cable assembly featuring SMB right angle plugs on both ends, terminated to RG-316/U cable. This assembly provides a 50 Ohm impedance and is shielded for reliable RF signal transmission. The cable length is 6.00 inches (152.40 mm) with a tolerance per the Amphenol drawing. This assembly is part of the 145104 series and is designed for DC to 3.0 GHz frequency range. The connectors use female contacts and are free-hanging (in-line) mounting type. The assembly is Hi-Pot tested to 500 VRMS. It is packaged as a single unit.
50 Ohms overall and cable impedance.
RG-316/U.
DC to 3.0 GHz.
Yes, it features shielded construction.
