| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
92 pcs
|
92 pcs | On Request | 1 | On Request | On Request | 622 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Halogen Free | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

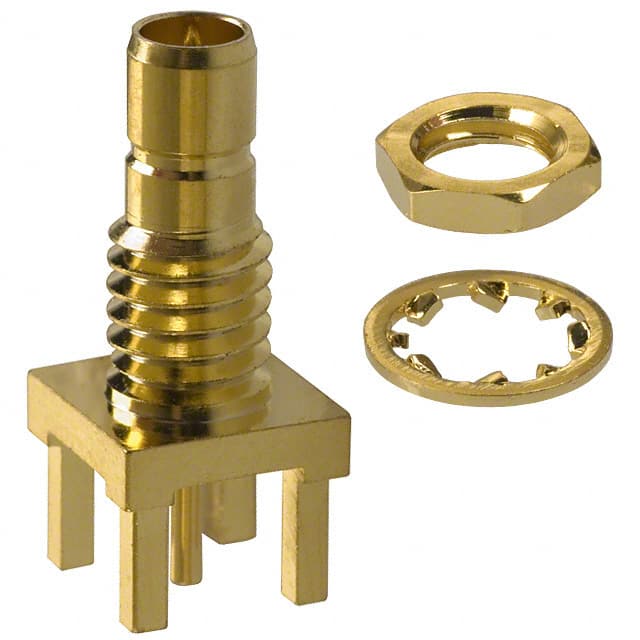

The Amphenol RF 142210-75 is a Mini SMB coaxial connector receptacle with a male pin contact center. It is designed for 75 Ohm impedance systems and features a snap-on fastening type for quick and secure mating.
Mechanically, the connector is panel mounted with through hole solder termination for both the center contact and shield. The center contact is made of beryllium copper and the housing is gold plated. The mounting feature is bulkhead with a front side nut.
This connector is intended for RF signal applications where a compact, 75 Ohm interface is required. The single-port design with solder terminations supports reliable connections in coaxial cable assemblies.
The impedance is 75 Ohm.
It is a Mini SMB receptacle with a male pin contact.
It is panel mounted through hole with a bulkhead front side nut.
Contact termination is solder.
The center contact material is beryllium copper.
