| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

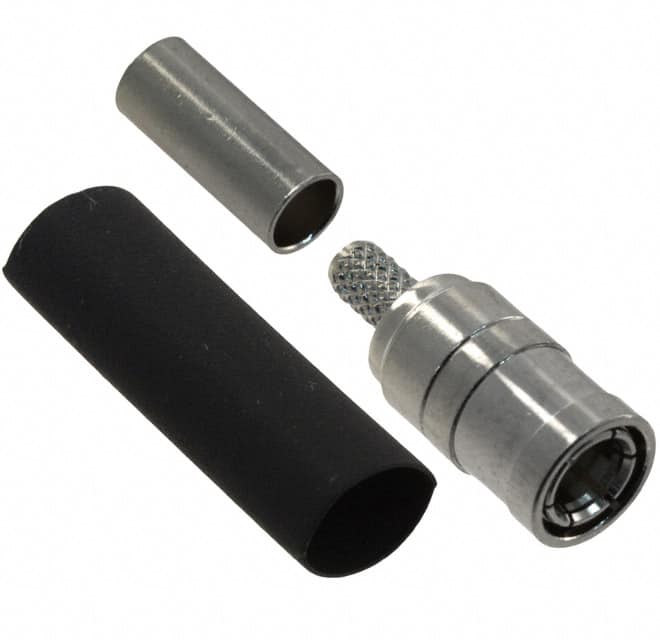

The Amphenol RF 142178 is a straight SMB plug coaxial connector designed for use with a variety of popular cable types, including RG-174, RG-188, RG-316, LMR-100, and M17/119-RG174. It features a female socket center contact made of beryllium copper and a silver-plated housing.
This connector provides a 50 Ohm impedance and supports frequencies up to 4 GHz, making it suitable for RF applications requiring reliable signal integrity. The fastening type is snap-on for quick and secure mating. The contact termination is solder, and the shield termination is crimp, ensuring robust mechanical and electrical connections.
The connector is designed for free-hanging (in-line) mounting, offering flexibility in cable assembly layouts. It is RoHS3 compliant and REACH unaffected, meeting common environmental standards.
The impedance is 50 Ohms.
The maximum frequency is 4 GHz.
Compatible cable groups include RG-174, 188, 188A, 316, LMR-100, and M17/119-RG174.
The contact termination is solder and the shield termination is crimp.
The mounting type is free hanging (in-line).
