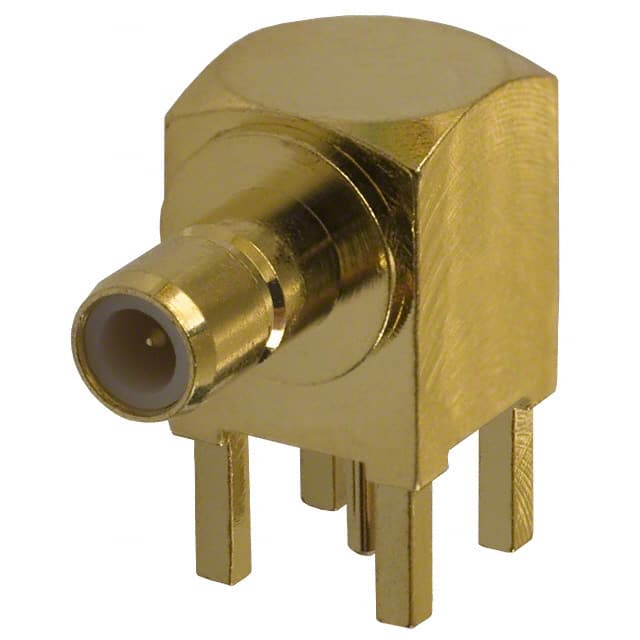

The 142146 is an SMB right angle jack connector manufactured by Amphenol RF. It is designed for through hole PCB mounting with solder termination for both contact and shield. The connector features a snap-on fastening type and a single port configuration.
Electrical specifications include 50 Ohm nominal impedance, a maximum frequency of 4 GHz, VSWR of 1.200 max, and return loss of -20.8 dB max. The dielectric withstanding voltage is 1000 VRMS. The operating temperature range is -65°C to +165°C.
The connector body and center contact are made of brass with gold plating, and the insulator is PTFE. It is rated for 500 mating cycles minimum.
This connector is suitable for RF applications requiring reliable performance up to 4 GHz.
Through Hole, Right Angle.
1000 VRMS.
50 Ohm.
4 GHz.
1.200 max.
-65°C to +165°C.
500 cycles.
