| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

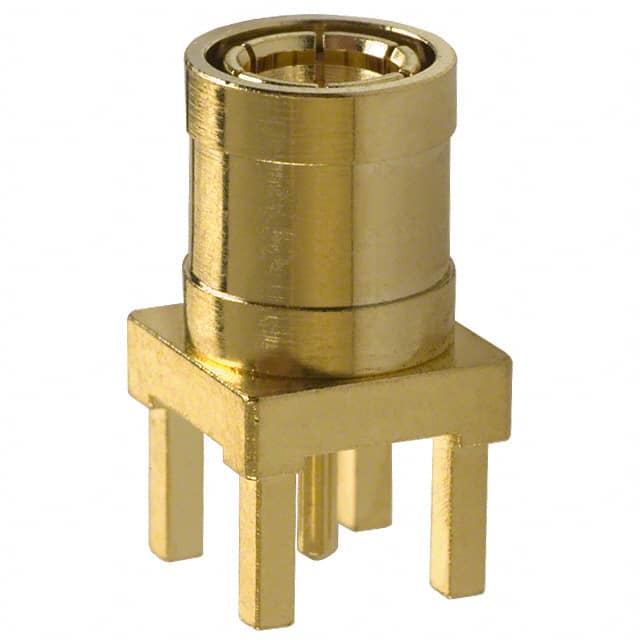

The Amphenol RF 142134 is an SMB plug connector designed for RF applications. It features a female socket contact and a 50 ohm characteristic impedance, supporting frequencies up to 4 GHz. The connector uses a snap-on fastening mechanism for quick and secure connections. It is designed for through hole mounting with solder termination for both the center contact and shield. The center contact is made of brass, and the housing is gold plated for corrosion resistance and reliable electrical performance. This single-port connector is suitable for PCB integration in communication systems, test equipment, and wireless modules.
Through hole.
50 ohm.
4 GHz.
SMB.
Snap-On.
Solder.
Gold.
