| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Body Plating | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Frequency | |
| Frequency Range | |
| Housing Color | |
| Impedance | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| SVHC Present | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style | |
| Working Voltage |

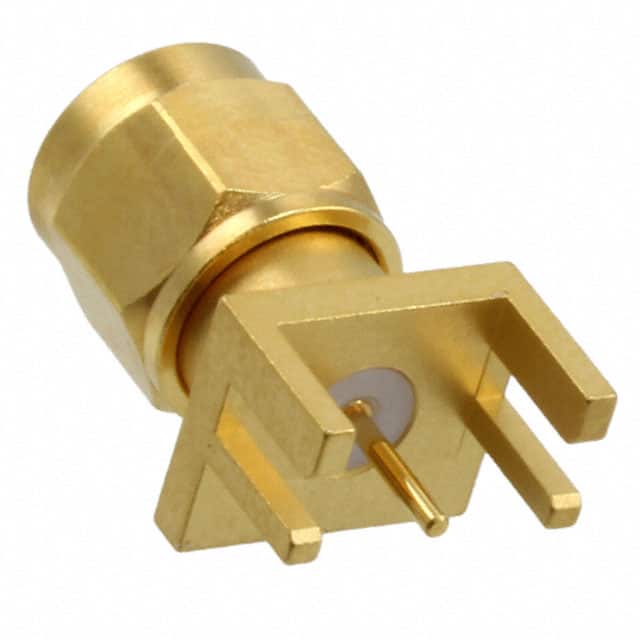

The 142-0801-801 is an SMA plug connector designed for board edge, end launch mounting. It features a male pin center contact, 50 Ohm impedance, and operates from DC to 18 GHz. This connector is suitable for high-frequency applications requiring reliable signal integrity. The center contact is made of brass, with gold plating on the housing and body. The fastening type is threaded, ensuring secure connections. The working voltage is 335 Vrms with a dielectric withstanding voltage of 1000 Vrms. Termination is via solder for both contact and shield. This connector is part of the SMA series, a common interface for RF and microwave systems.
Board edge, end launch.
335 Vrms.
50 Ohm.
0 to 18 GHz.
1000 Vrms.
Threaded.
Brass.
