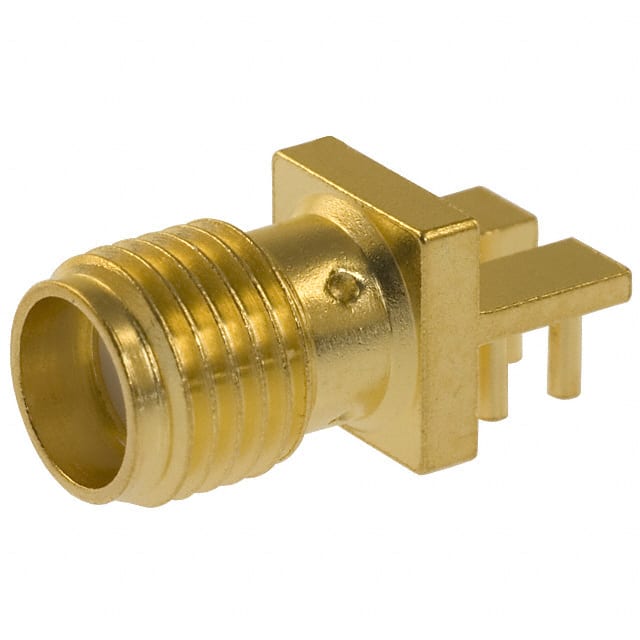

This Cinch 142-0761-811 is an SMA Jack connector, also known as a female socket, designed for high-frequency applications up to 26.5 GHz. It features a standard 50 Ohm impedance, making it suitable for a wide range of RF and microwave systems.
The connector is designed for board edge, end launch mounting, and utilizes a solder termination style for both the main connection and shield. The center contact is made of durable Beryllium Copper, and the housing is finished in gold for optimal conductivity and corrosion resistance. This threaded connector is designed for secure fastening.
With a single port and a high-frequency capability, this connector is a reliable choice for applications requiring robust RF connectivity. Its construction and termination methods ensure a stable and efficient signal path in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.00 | $23.00 |
| 10+ | $13.00 | $21.00 |
| 100+ | $9.00 | $15.00 |
| 1,000+ | $7.00 | $11.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance of the Cinch 142-0761-811 connector is 50 Ohm.
The 142-0761-811 connector has a maximum frequency of 26.5 GHz.
The Cinch 142-0761-811 connector is mounted via Board Edge and End Launch.
The 142-0761-811 uses a Solder termination style.
The center contact of the 142-0761-811 is made from Beryllium Copper.
The fastening type for this SMA connector is Threaded.
