| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Plating | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Operating Voltage | |
| SVHC Present | |
| Shield Termination | |
| Standard Package Qty | |
| Tape & Reel |

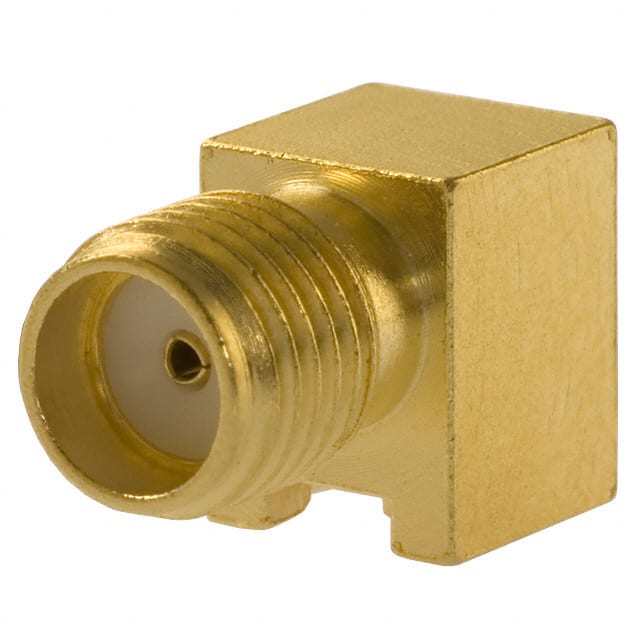

The Cinch Connectivity Solutions 142-0711-301 is an SMA jack connector designed for right angle surface mount applications. This 50 Ohm connector operates up to 18 GHz, making it suitable for high-frequency RF systems.
The connector features a gold plated body and beryllium copper center contact, providing reliable electrical performance. It supports threaded fastening for secure mating and uses solder terminations for both center and shield contacts. The operating voltage is rated at 335 Vrms with a dielectric withstanding voltage of 1000 Vrms for uncabled receptacles at sea level.
Packaged in tape and reel with 425 pieces per reel, this connector is designed for automated assembly processes. The gold housing color and right angle orientation facilitate space-constrained PCB layouts.
Jack, Female Socket; SMA style.
50 Ohm.
18 GHz.
Surface mount, right angle.
335 Vrms for uncabled receptacles at sea level.
Tape and reel, 425 pieces per reel.
Threaded.
