142-0701-801 The Cinch 142-0701-801 is an SMA Jack connector designed for end launch mounting. It features a 50 Ohm impedance and operates over a frequency range of 0-18 GHz.
Mfr Part #:

142-0701-801

Available from 3 distributors
Mfr Name: Cinch
Cinch
The Cinch 142-0701-801 is an SMA Jack connector designed for end launch mounting. It features a 50 Ohm impedance and operates over a frequency range of 0-18 GHz.
✓ Total Stock: 152 pcs

142-0701-801 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
86 pcs
On Request
86 pcs On Request 1 On Request On Request On Request On Request On Request
HMB Electronics LLC ✓
Non-Authorised Inventory information
38 pcs
On Request
38 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
28 pcs
On Request
28 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

142-0701-801 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Center Contact Material
Connector Style
Connector Type
Contact Termination
Corona Level
Dielectric Withstanding Voltage
Fastening Type
Frequency
Frequency Range
Housing Color
Impedance
Lead Style
Mounting Type
Number of Ports
Shield Termination
Storage Temperature
Tape & Reel
Termination Style
VSWR
Working Voltage
View Similar Products (0)

142-0701-801 Description

Short technical summary and product information.

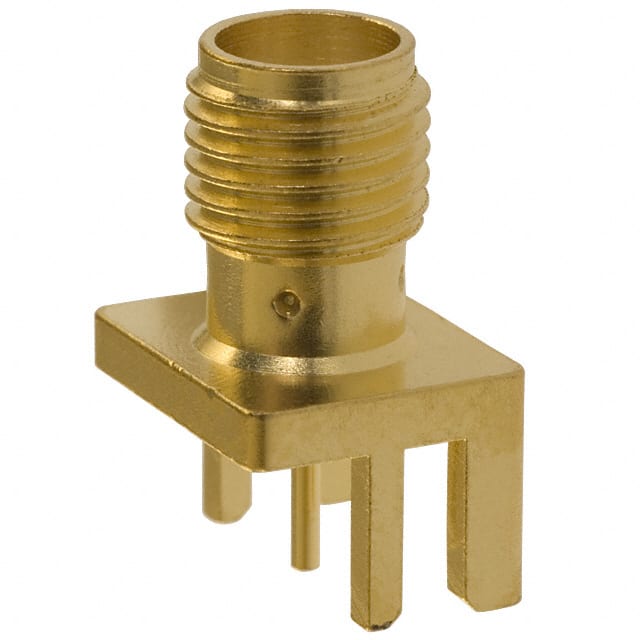

This Cinch 142-0701-801 is an SMA Jack connector, also known as a female socket, with a standard 50 Ohm impedance. It is designed for end launch mounting directly onto a board edge.



The connector supports a wide frequency range from 0 to 18 GHz, making it suitable for various RF applications. The center contact is made of Beryllium Copper, and the contact termination is achieved through soldering. The housing is gold-plated for durability and signal integrity.



With a working voltage of 335 Vrms and a dielectric withstanding voltage of 1000 VRMS, this connector is built for reliable performance. The mounting type is specified as Board Edge, End Launch, with a threaded fastening type.



This component is also identified by the distributor part number J502-ND from Cinch. It is compliant with RoHS3 standards, though this status is unverified.

142-0701-801 Quick Information

Product Type: SMA Connector
Series: SMA
Canonical Name: Cinch 142-0701-801 SMA Jack End Launch Connector
Subcategory: SMA Jack

142-0701-801 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

142-0701-801 Features

  • SMA Jack, female socket connector.
  • 50 Ohm impedance for RF applications.
  • 0-18 GHz frequency range.
  • Board edge, end launch mounting.
  • Solder termination for secure connection.

142-0701-801 Applications

  • Suitable for RF signal transmission.
  • Ideal for high-frequency applications.
  • Used in board-level RF circuits.
  • End launch mounting designs.

142-0701-801 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of the Cinch 142-0701-801 connector?

The impedance of the Cinch 142-0701-801 connector is 50 Ohm.

What is the frequency range for the 142-0701-801 SMA connector?

The frequency range for this connector is 0-18 GHz.

What is the working voltage for the Cinch 142-0701-801?

The working voltage is 335 Vrms.

What is the dielectric withstanding voltage of the 142-0701-801?

The dielectric withstanding voltage is 1000 VRMS.

What is the center contact material?

The center contact material is Beryllium Copper.

What type of connector is the 142-0701-801?

It is an SMA Jack, Female Socket connector.

How is the 142-0701-801 mounted?

It is designed for Board Edge, End Launch mounting.
