| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
49 pcs
|
49 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

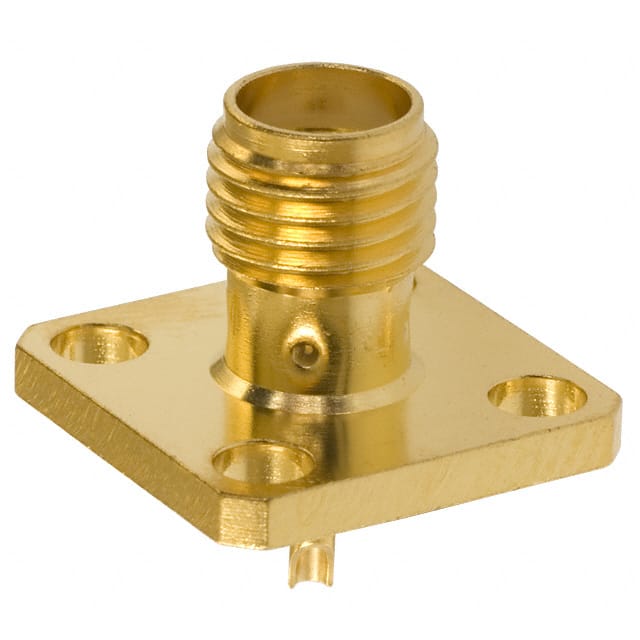

The 142-0701-631 is an SMA jack receptacle from Cinch Connectivity Solutions. It features a 50 Ohm impedance and supports frequencies up to 18 GHz, making it suitable for RF and microwave applications. The connector uses a threaded coupling mechanism and a solder cup contact termination for reliable connections.
This panel mount receptacle is designed with a flange for secure installation. The center contact is made of beryllium copper with gold plating, ensuring good conductivity and durability. The housing is also gold plated. As an uncabled receptacle, VSWR is not applicable.
Typical applications include test and measurement equipment, communication systems, and aerospace electronics where a robust 50 Ohm interface is required. The connector is RoHS3 compliant (unverified) and has an MSL of 1 (unlimited).
50 Ohms.
18 GHz.
SMA Jack, Female Socket.
Panel mount with flange.
Solder cup.
Threaded.
RoHS3 Compliant (unverified).
