142-0701-551 SMA Jack, female socket, right angle, panel mount through hole bulkhead connector. 50 Ohm impedance, 18 GHz max frequency, solder termination.
Mfr Part #:

142-0701-551

Available from 1 distributors
Mfr Name: Cinch
Cinch
SMA Jack, female socket, right angle, panel mount through hole bulkhead connector. 50 Ohm impedance, 18 GHz max frequency, solder termination.
✓ Total Stock: 37,594 pcs
$ Price Range: $7.57 - $9.19

142-0701-551 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
37,594 pcs
On Request
37594 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

142-0701-551 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Insulation Resistance
Lead Style
Mounting Feature
Mounting Type
Number of Ports
Shield Termination
Termination Style
View Similar Products (0)

142-0701-551 Description

Short technical summary and product information.

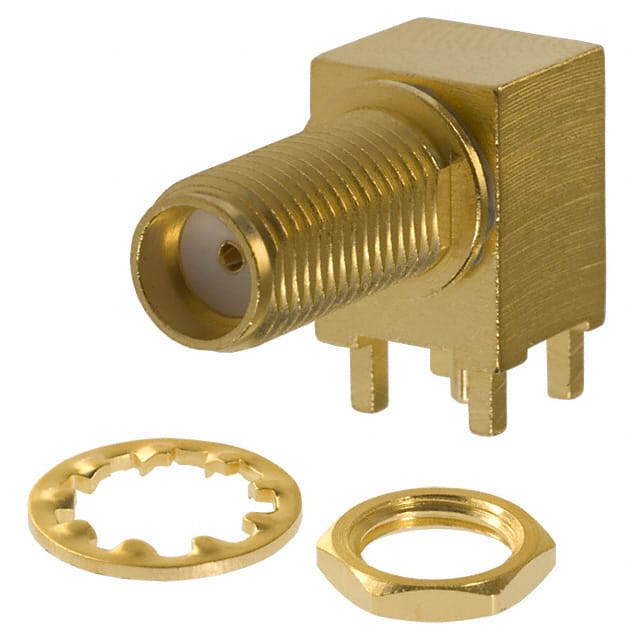

This SMA coaxial connector from Cinch Connectivity Solutions features a jack (female socket) configuration with a right angle orientation for PCB mounting. It is designed for bulkhead panel mount with front side nut fastening, providing a secure threaded connection. The connector offers 50 Ohm impedance and supports frequencies up to 18 GHz, making it suitable for a wide range of RF applications. The center contact is made of beryllium copper, and the housing is gold plated for reliable conductivity and corrosion resistance. Termination is solder for both the center contact and shield. Electrical specifications include a minimum insulation resistance of 5000 MOhm and a maximum initial contact resistance of 3.0 mOhm. The right angle design allows for space-saving layouts on PCBs. This connector is RoHS3 compliant and has an MSL of 1 (unlimited). It is ideal for use in test and measurement, aerospace, defense, and telecommunications equipment where high-frequency performance up to 18 GHz is required.

142-0701-551 Quick Information

Product Type: RF Coaxial Connector
Series: SMA
Canonical Name: SMA Jack Right Angle PCB Mount Bulkhead Connector
Subcategory: SMA Connector

142-0701-551 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

142-0701-551 Estimated Pricing

Qty Low High
1+ $9.19 $9.19
10+ $8.76 $8.76
25+ $8.50 $8.50
50+ $8.25 $8.25
100+ $8.02 $8.02
250+ $8.35 $8.35
500+ $7.95 $7.95
1,000+ $7.57 $7.57

Estimated market price range - modelled values for guidance only, not live distributor offers.

142-0701-551 Features

  • SMA jack female socket connector.
  • 50 Ohm impedance, 18 GHz max frequency.
  • Right angle PCB mount bulkhead design.
  • Gold plated beryllium copper contacts.
  • Threaded fastening for secure connection.

142-0701-551 Applications

  • Ideal for RF signal transmission up to 18 GHz.
  • Used in test and measurement equipment.
  • Suitable for aerospace and defense applications.
  • Perfect for space-constrained PCB layouts.

142-0701-551 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the mounting type of this connector?

Panel mount, through hole, right angle with bulkhead front side nut.

What is the impedance of the 142-0701-551?

50 Ohms.

What is the maximum frequency?

18 GHz.

What is the termination style?

Solder for both contact and shield.

What is the connector style?

SMA.

Is this connector RoHS compliant?

RoHS3 compliant (unverified).

What is the center contact material?

Beryllium Copper.
