| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
816 pcs
|
816 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Finish | |
| Body Plating | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style | |
| Working Voltage |

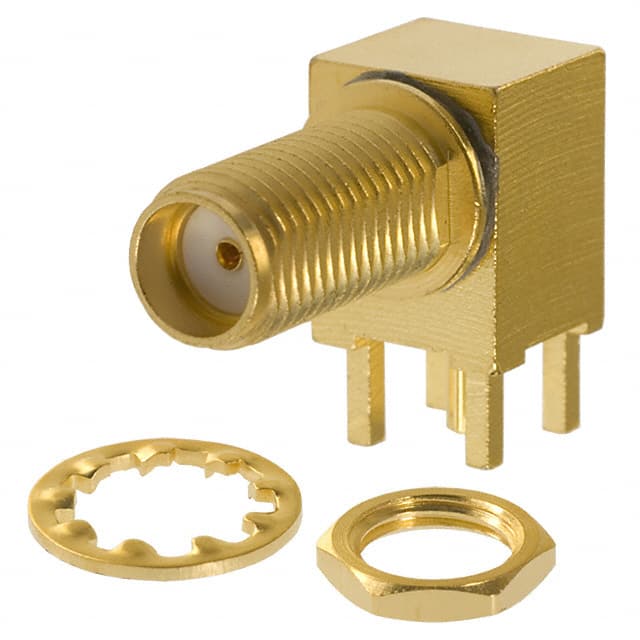

The 142-0701-501 is an SMA coaxial connector from Cinch Connectivity Solutions. It is a right angle bulkhead jack receptacle with a female socket interface designed for 50 Ohm impedance systems. The connector supports frequencies up to 18 GHz and is suitable for uncabled receptacle applications.
The connector features a panel mount with through hole termination and a right angle orientation. The contact is made of beryllium copper with gold plating, while the body has a nickel finish. Mounting is secured via a bulkhead front side nut. The housing is gold colored.
This connector is RoHS, REACH, and MSL level 1 compliant (unverified). It is ideal for use in RF systems requiring a compact, right angle interface with reliable electrical performance up to 18 GHz.
50 Ohms.
18 GHz.
335 Vrms maximum at sea level.
Panel mount, through hole, right angle.
Solder for both contact and shield.
Not applicable for uncabled receptacles.
Yes, listed as RoHS3 compliant (unverified).
