142-0701-301 SMA jack, female socket, right angle PCB mount connector with 50 Ohm impedance and 18 GHz frequency rating.
Mfr Part #:

142-0701-301

Available from 1 distributors
Mfr Name: Cinch
Cinch
SMA jack, female socket, right angle PCB mount connector with 50 Ohm impedance and 18 GHz frequency rating.
✓ Total Stock: 50 pcs

142-0701-301 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
HMB Electronics LLC ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

142-0701-301 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Center Contact Material
Connector Style
Connector Type
Contact Termination
Dielectric Withstanding Voltage
Fastening Type
Frequency
Housing Color
Impedance
Lead Style
Military Grade
Mounting Type
Number of Ports
Shield Termination
Storage Temperature
Tape & Reel
Working Voltage
View Similar Products (0)

142-0701-301 Description

Short technical summary and product information.

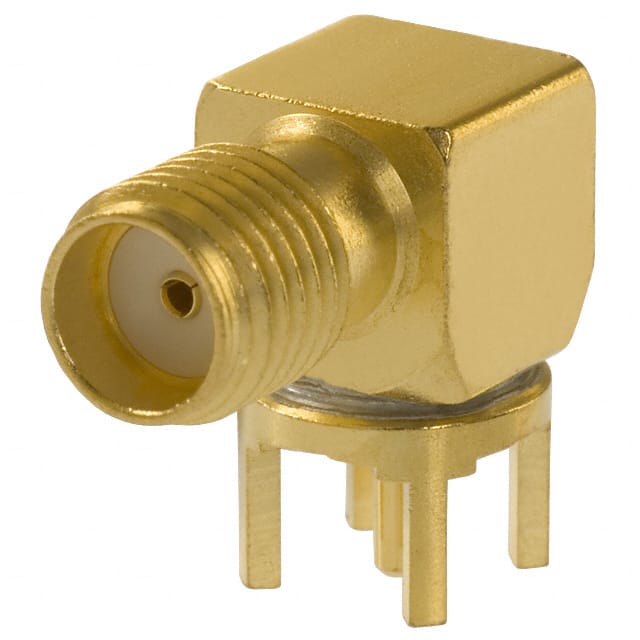

The 142-0701-301 is an SMA jack (female socket) connector from Cinch Connectivity Solutions, designed for right angle through-hole PCB mounting. It features a threaded fastening type, solder contact and shield termination, and a gold-plated beryllium copper center contact.



Electrical specifications include 50 Ohm impedance, a frequency range up to 18 GHz, working voltage of 335 Vrms at sea level, and dielectric withstanding voltage of 1000 Vrms at sea level for uncabled receptacles. The housing is gold colored.



This right angle configuration is suitable for dense PCB layouts where space is limited. The SMA interface is widely used in RF and microwave applications up to 18 GHz.

142-0701-301 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Series: SMA
Canonical Name: SMA Right Angle Jack PCB Receptacle, 50 Ohm, 18 GHz
Subcategory: SMA Connector

142-0701-301 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 202
REACH Status: REACH Unaffected
Lead Free: Yes

142-0701-301 Features

  • SMA jack, female socket, right angle PCB mount.
  • 50 Ohm impedance, operates up to 18 GHz.
  • Gold-plated beryllium copper center contact.
  • Threaded fastening for reliable RF connection.
  • Rated for 335 Vrms working voltage.

142-0701-301 Applications

  • Used in RF and microwave PCB assemblies.
  • Suitable for test and measurement equipment.
  • Ideal for 5G and IoT infrastructure modules.
  • Common in aerospace and defense communication systems.

142-0701-301 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the impedance of the 142-0701-301?

50 Ohms.

What is the maximum frequency rating?

18 GHz.

What mounting style does this connector use?

Through hole, right angle.

What is the fastening type?

Threaded.

What is the working voltage rating?

335 Vrms at sea level for uncabled receptacles.
