| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
98 pcs
|
98 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style |

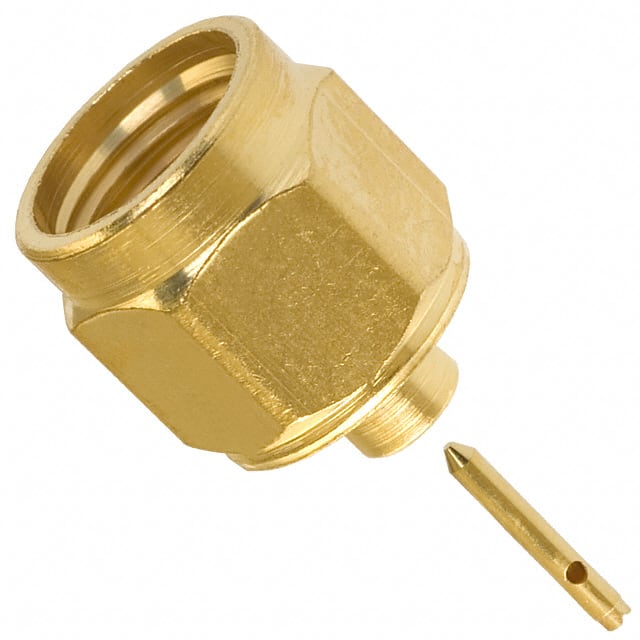

The 142-0693-001 is a Cinch Connectivity Solutions SMA plug connector designed for use with RG-405/U (.086 semi-rigid) coaxial cable. It features a straight male pin contact and a threaded coupling nut for secure mating. The connector offers 50 Ohm impedance and supports frequencies up to 26.5 GHz.
The center contact is made of brass, and the housing has a gold color finish. Both the center contact and shield are terminated via solder. This connector is a free hanging (in-line) type, making it suitable for cable assembly applications where a permanent solder connection is desired.
This component is RoHS3 and REACH compliant (unverified) and has an MSL rating of 1 (unlimited). It is commonly used in RF and microwave systems requiring reliable signal transmission.
It is an SMA plug connector with a male pin contact.
50 Ohm impedance, maximum frequency 26.5 GHz.
Both the center contact and shield are terminated by solder.
RG-405 (.086 Semi Rigid) cable.
Threaded coupling.
