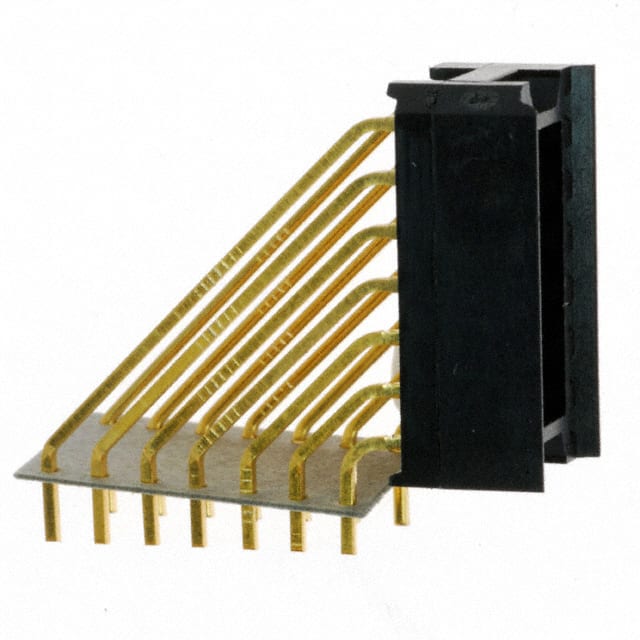

14-810-90 14-810-90 is a 14-position DIP socket from Aries Electronics. It features gold-plated phosphor bronze contacts, 2.54mm pitch, and a UL 94V-0 nylon housing.
Mfr Part #:

14-810-90

Available from 2 distributors
Mfr Name: Aries Electronics
Aries Electronics
14-810-90 is a 14-position DIP socket from Aries Electronics. It features gold-plated phosphor bronze contacts, 2.54mm pitch, and a UL 94V-0 nylon housing.
✓ Total Stock: 600 pcs

14-810-90 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

14-810-90 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Finish Thickness
Contact Material
Current Rating
Features
Housing Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions or Pins (Grid)
Operating Temperature
Pitch
Row Spacing
Termination
Termination Style
Type
View Similar Products (0)

14-810-90 Description

Short technical summary and product information.

The Aries Electronics 14-810-90 is a 14-position DIP socket designed for vertical through-hole mounting. It features a closed-frame design with bifurcated phosphor bronze contacts plated with 10µin gold over nickel. The socket accepts standard DIP packages with 0.3" (7.62mm) row spacing and 2.54mm pitch.



Electrical ratings include a current rating of 1.5A per contact and an operating temperature range up to 125°C with gold plating. The insertion force averages 110g per pin, and withdrawal force averages 75g per pin. The housing is made of black UL 94V-0 rated 4/6 nylon.



This socket is suitable for packaging LEDs, incandescent lamps, DIP switches, test points, and displays. It accepts flat leads up to 0.014" thick and round leads up to 0.020" diameter. The suggested PCB hole size is 0.044" ±0.002".

14-810-90 Quick Information

Product Type: IC Socket
Series: 800
Canonical Name: 14 Position DIP Socket, 0.3" (7.62mm) Row Spacing, Through Hole, Vertical, Gold Contacts
Subcategory: IC Sockets

14-810-90 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

14-810-90 Features

  • 14-position DIP socket with 0.3" row spacing.
  • Gold-plated phosphor bronze contacts.
  • Rated for 1.5A per contact.
  • Operating temperature up to 125°C.
  • Closed-frame design for contact protection.

14-810-90 Applications

  • Ideal for packaging DIP ICs and LEDs.
  • Suitable for test points and DIP switches.
  • Used in vertical mounting applications.
  • Accepts standard displays and lamps.

14-810-90 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 14-810-90 have?

14 positions.

What is the pitch of this DIP socket?

2.54mm (0.100").

What is the current rating?

1.5A per contact.

What is the mounting type?

Through hole, vertical.

What is the contact finish?

Gold, 10µin (0.25µm) over nickel.

What is the operating temperature?

Up to 125°C with gold plating.

What is the housing material?

Polyamide (PA46), Nylon 4/6, UL 94V-0.
