| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,250 pcs
|
4250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch |

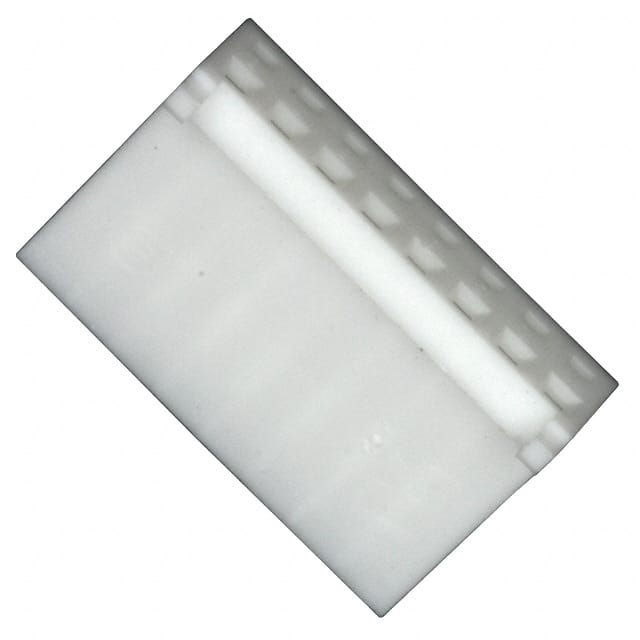

The TE Connectivity 1375820-8 is a rectangular connector housing in the AMPMODU series, designed for wire-to-board or wire-to-wire applications.
This housing accepts 8 female socket contacts in a single row configuration with a 2.54mm (0.100 inch) pitch. The receptacle housing features a locking ramp fastening type for secure mating with header pins. The housing is white in color and supports free hanging (in-line) mounting.
The connector housing operates over a temperature range of -55°C to 105°C. Contacts are terminated using the crimp method, allowing for reliable wire connections. The housing is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
The housing has 8 positions arranged in a single row.
The pitch is 2.54mm (0.100 inches).
The housing is designed for free hanging (in-line) mounting.
The operating temperature range is -55°C to 105°C.
