| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Resistance - Center | |
| Contact Resistance - Outer | |
| Contact Retention | |
| Contact Termination | |
| Dielectric Withstanding Voltage | |
| Engagement/Disengagement Force | |
| Fastening Type | |
| Frequency | |
| Frequency Range | |
| Gender | |
| Housing Color | |
| Impedance | |
| Insertion Loss | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| RF Leakage | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style | |
| Working Voltage |

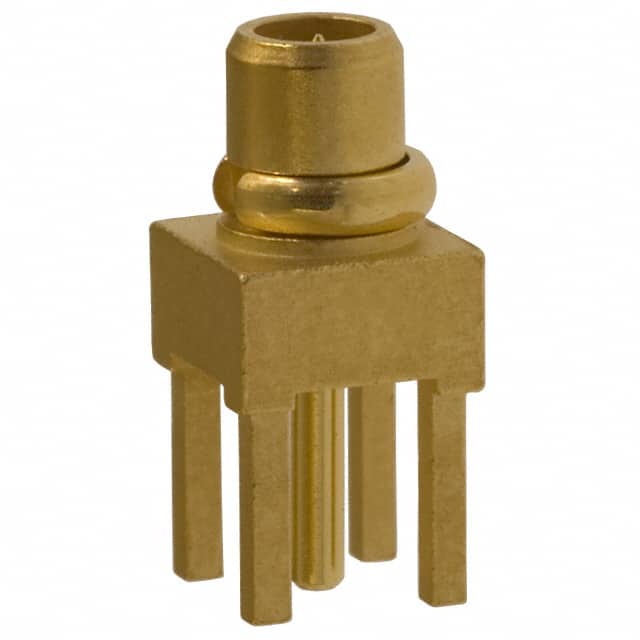

The Cinch 135-3801-201 is a straight MMCX plug connector designed for through-hole PCB mounting. It features a male pin center contact made of beryllium copper with gold plating, and a gold-plated brass housing. The connector uses solder terminations for both the center contact and shield, and employs a snap-on fastening type for quick mating.
Electrically, this connector is rated for 50 Ohm impedance and operates over a frequency range of 0 to 6 GHz. It has a working voltage of 170 Vrms and a dielectric withstanding voltage of 500 Vrms at sea level. Insertion loss is 0.1 dB max at 1 GHz, and RF leakage is -60 dB min at 2.5 GHz. Contact resistance is 5.0 mOhm max for the center contact and 1.0 mOhm max for the outer contact.
The connector is suitable for applications requiring reliable RF performance in a compact package. Its straight PCB mount design allows for direct soldering to a printed circuit board, and the snap-on interface ensures secure connections in high-vibration environments.
50 Ohms.
0 to 6 GHz.
Solder for both center contact and shield.
Through hole, straight PCB mount.
