| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
116 pcs
|
116 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Corona Level | |
| Dielectric Withstanding Voltage | |
| Failure Rate | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Insertion Loss | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style | |
| VSWR | |
| Working Voltage |

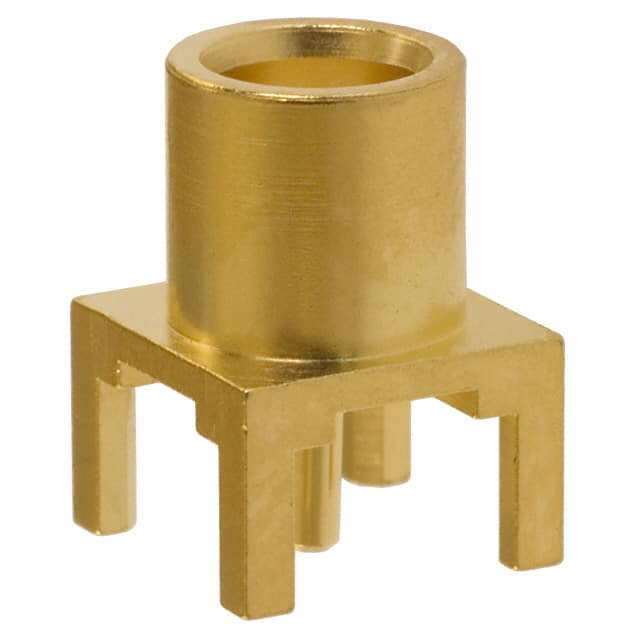

The 133-3701-211 is an MCX series straight jack receptacle from Cinch Connectivity Solutions. It features a 50 Ohm impedance and supports frequencies up to 6 GHz. The connector uses a through hole mounting style with solder termination for both contact and shield. The center contact is made of beryllium copper with gold plating, and the housing is gold plated. Electrical specifications include a working voltage of 250 Vrms at sea level, dielectric withstanding voltage of 750 Vrms minimum, and insertion loss of 0.1 dB maximum at 1 GHz. Insulation resistance is 10,000 megohms minimum. The connector uses a snap-on fastening type and is designed for PCB applications. It is compatible with RG-178 cable and has a VSWR of 1.17 + 0.04f (f in GHz) for that cable type.
50 Ohms.
6 GHz.
Through Hole.
250 Vrms.
1.17 + 0.04f (f in GHz).
0.1 dB maximum.
Beryllium Copper.
