| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
56 pcs
|
56 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

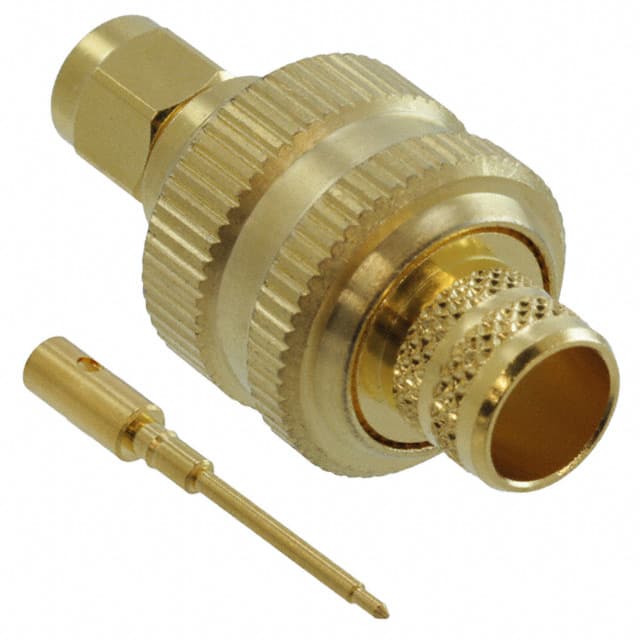

The Amphenol RF 132368 is an SMA plug coaxial connector assembly designed for reliable high-frequency signal transmission. It features a male pin center contact made of brass and a gold-plated housing. The connector offers a 50 Ohm characteristic impedance and supports frequencies up to 12.4 GHz, making it suitable for RF applications.
This connector uses a threaded coupling mechanism for secure mating and a crimp termination for both the center contact and shield, simplifying field installation. It is designed for free-hanging (in-line) mounting and accommodates RG-8, RG-213, and RG-393 cable types.
The robust brass construction with gold plating provides excellent conductivity and corrosion resistance. This SMA plug is commonly used in telecommunications, test equipment, and wireless infrastructure where consistent RF performance is required.
50 Ohm.
12.4 GHz.
Crimp termination for both center contact and shield.
RG-8, RG-213, and RG-393.
Free hanging (in-line).
