| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Orientation | |
| Shield Termination | |
| Tape & Reel |

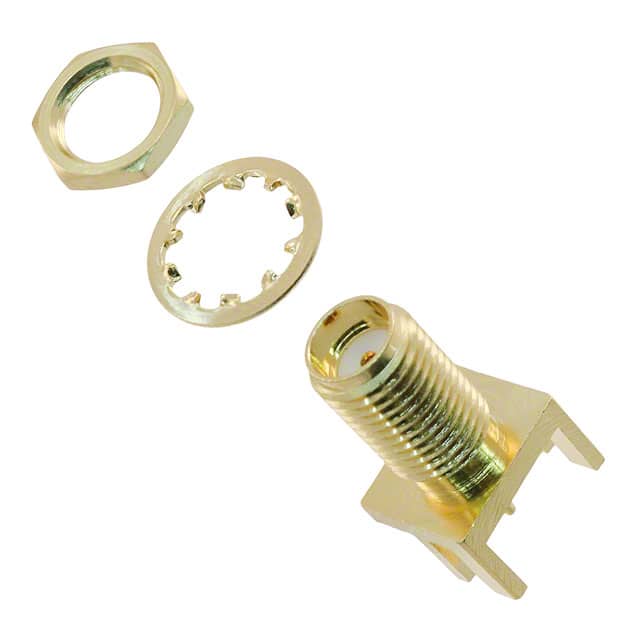

This SMA coaxial connector from Amphenol RF is a 50 Ohm receptacle with a female socket contact. It is rated for operation up to 18 GHz and features a threaded fastening type for secure connections. The mounting options include board edge end launch and panel mount, with a bulkhead front side nut feature. Both the contact and shield are terminated by solder. The center contact is made of beryllium copper, and the housing has a gold color finish.
Designed for RF applications requiring reliable signal integrity, this connector supports single-port configurations and a straight orientation. The materials and construction align with industry standards for high-frequency coaxial interconnects.
Compliance data indicates RoHS3 compliance, REACH unaffected status, and MSL Level 1 (unlimited), though these values are unverified and should be confirmed with the manufacturer or an authorized distributor.
50 Ohm.
18 GHz.
Board edge, end launch, and panel mount with a bulkhead front side nut.
Both the center contact and shield are terminated by solder.
RoHS3 Compliant (unverified).
MSL 1 (Unlimited).
