| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
240 pcs
|
240 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style |

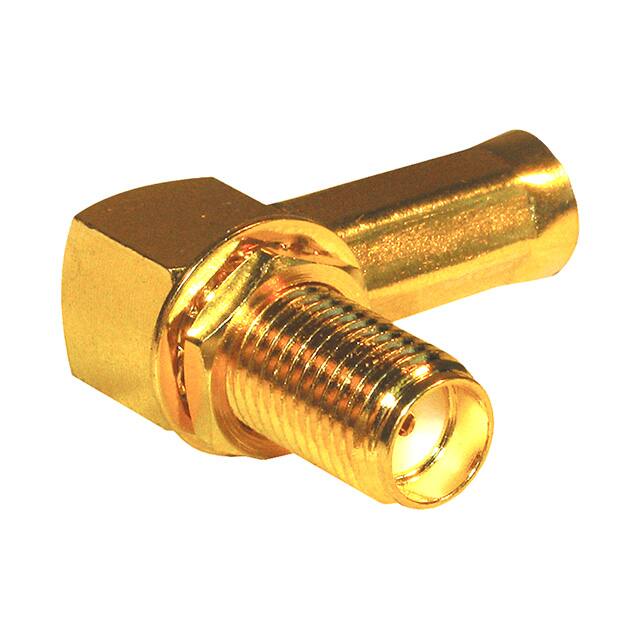

The 132246 is a coaxial RF connector from Amphenol RF, featuring an SMA jack with a female socket. It is designed for a 50 Ohm impedance and operates up to 12.4 GHz. The connector has a right angle orientation and is panel mounted with a bulkhead front side nut for secure installation. The center contact is made of beryllium copper and terminated with solder, while the shield is terminated via crimp. The housing is gold-plated. This connector is compatible with a variety of cables including RG-58, 58A, 58B, 58C, 141, 303, LMR-195, and Belden B7806A, 9907. It is a single-port, threaded fastening design suitable for demanding RF applications.
50 Ohm.
12.4 GHz.
Panel mount, right angle, with bulkhead front side nut.
RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907.
Solder.
Crimp.
Female socket.
