| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,847 pcs
|
7847 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Ingress Protection | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

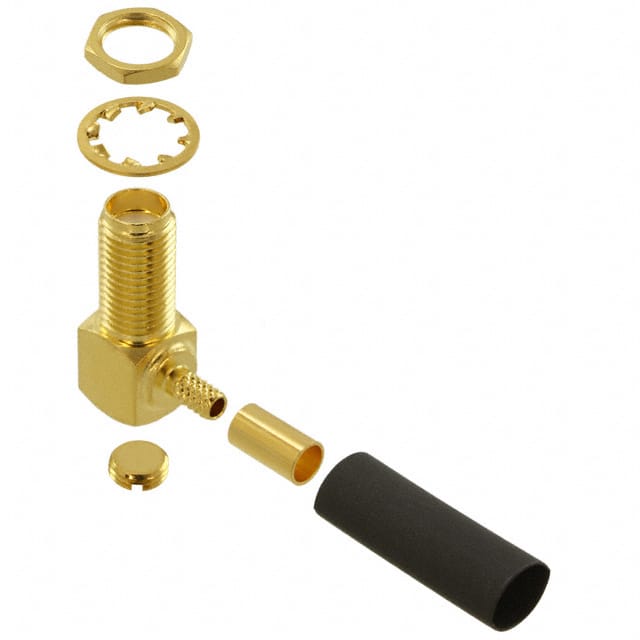

The Amphenol RF 132245 is an SMA coaxial connector assembly featuring a jack, female socket configuration with a right-angle body style. It is designed for 50 Ohm impedance systems and supports a maximum frequency of 12.4 GHz. The connector uses threaded fastening for secure mating and is terminated to the cable via solder for the center contact and crimp for the shield. It accommodates cable groups including RG-174, RG-188, RG-316, LMR-100, and M17/119-RG174. The center contact is made of beryllium copper and the housing has a gold color finish. This connector is rated as weatherproof for ingress protection and is intended for free-hanging (in-line) mounting.
50 Ohm.
12.4 GHz.
SMA jack, female socket, right angle.
RG-174, RG-188, RG-188A, RG-316, LMR-100, M17/119-RG174.
Solder for the center contact, crimp for the shield.
Yes, it is rated as weatherproof.
Beryllium copper.
