| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Dielectric Withstanding Voltage | |
| Durability | |
| Fastening Type | |
| Frequency | |
| Halogen Free | |
| Housing Color | |
| Housing Material | |
| Impedance | |
| Insulator Material | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Nut & Lock Washer Material | |
| Operating Temperature Range | |
| Panel Thickness (max) | |
| SVHC Present | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style |

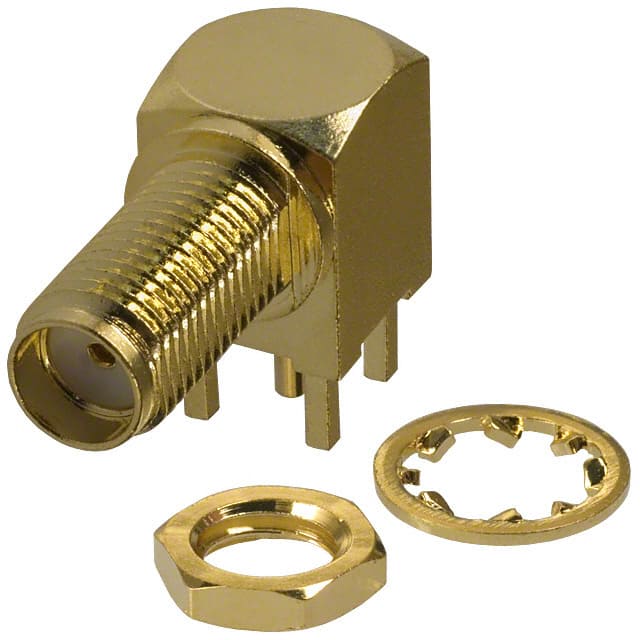

The Amphenol RF 132203 is an SMA right angle jack connector designed for PCB mounting through a panel bulkhead. It offers a 50 Ohm impedance and operates from DC to 12.4 GHz, making it suitable for a wide range of RF applications. The connector uses threaded fastening and a gold-plated brass housing with a PTFE natural insulator.
Electrical characteristics include a minimum dielectric withstanding voltage of 500 VRMS. Mechanical durability is rated for a minimum of 500 mating cycles. The center contact is made of beryllium copper with gold plating, while the housing, nut, and lock washer are gold-plated brass.
Mounting is via panel mount with a bulkhead front side nut, through hole solder contacts, and right angle orientation. The maximum panel thickness is 2.4 mm. Operating temperature range spans -65°C to +165°C.
50 Ohm.
12.4 GHz.
Panel mount, through hole, right angle, with bulkhead front side nut.
-65°C to +165°C.
Solder.
Housing is brass with gold plating; center contact is beryllium copper with gold plating.
500 VRMS minimum.
