| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
79 pcs
|
79 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Dielectric Withstanding Voltage | |
| Durability Cycles | |
| Fastening Type | |
| Frequency Range | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Operating Temperature Range | |
| Shield Termination | |
| Tape & Reel |

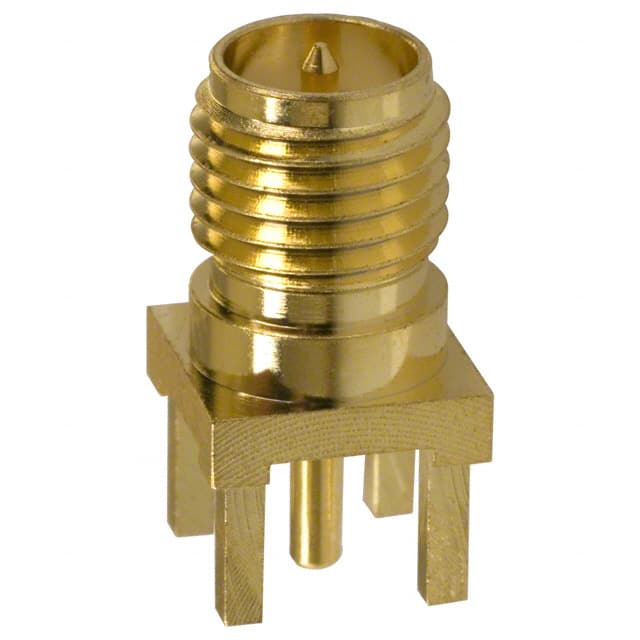

The 132134RP is an RP-SMA (Reverse Polarity SMA) jack connector manufactured by Amphenol RF. It features a male pin center contact and is designed for 50 Ohm impedance systems. The connector operates from DC to 18 GHz, making it suitable for a wide range of RF applications.
Electrical specifications include a dielectric withstanding voltage of 1000 V RMS. The connector is rated for 500 mating cycles and operates over a temperature range of -65°C to +165°C. The body is made of brass with gold plating, the center contact is brass with gold plating, and the insulator is PTFE (natural).
Mechanical characteristics include through hole mounting, threaded fastening (1/4-36 UNS-2A thread), and solder termination for both contact and shield. The connector has a single port and is gold in color.
This connector is suitable for PCB mounting in RF modules, antennas, and test equipment where reverse polarity SMA interface is required. The gold plating ensures good conductivity and corrosion resistance.
Dielectric withstanding voltage of 1000 V RMS.
Through hole mount.
50 Ohm.
DC to 18 GHz.
-65°C to +165°C.
500 cycles.
RP-SMA (Reverse Polarity SMA).
