| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | 2018-02-06 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

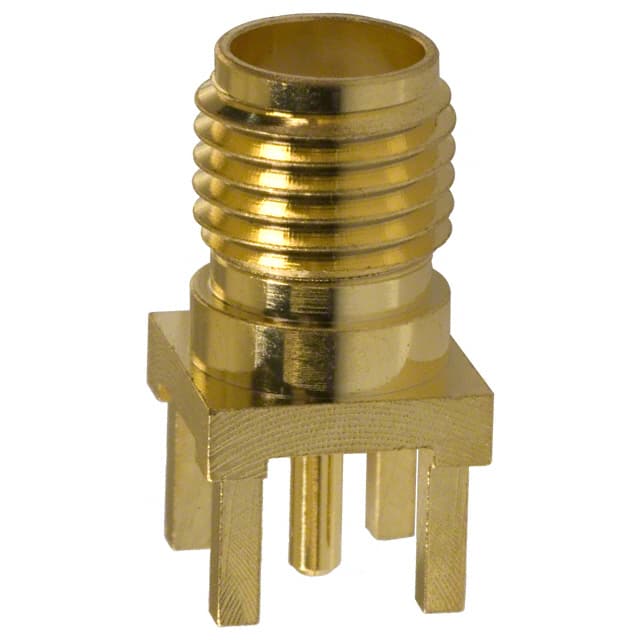

The Amphenol RF 132134 is an SMA jack, female socket coaxial connector designed for PCB applications. It offers a 50 Ohm impedance and operates from DC to 18 GHz, making it suitable for RF signal transmission. The connector uses a threaded fastening mechanism for secure mating.
Mounting is through hole with both contact and shield terminated via solder. The housing has a gold color finish, and the center contact is made from beryllium copper for reliable electrical performance. This single-port connector is a standard choice for RF interconnect assemblies.
50 Ohm.
18 GHz.
Through Hole.
Both center contact and shield are solder terminated.
Beryllium Copper.
Gold.
1 port.
