| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
180 pcs
|
180 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Ingress Protection | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style |

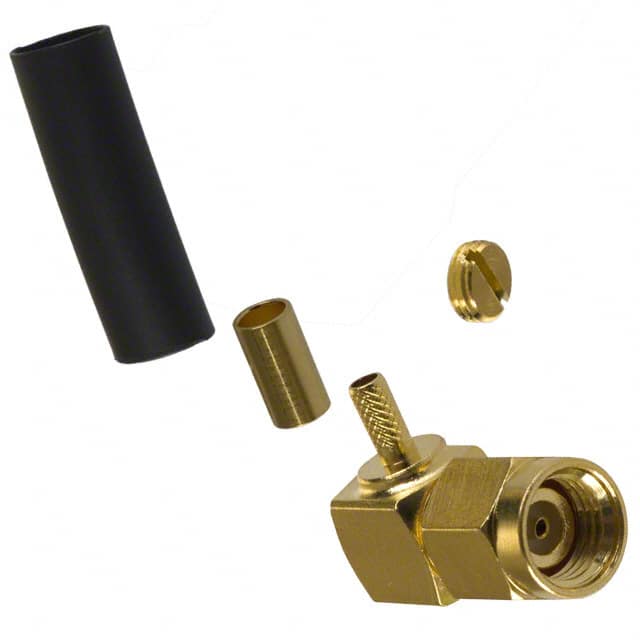

The Amphenol RF 132123RP is an RP-SMA plug connector featuring a female socket contact and right-angle body orientation. It is designed for 50 Ohm impedance systems and supports a maximum operating frequency of 12.4 GHz. The connector uses a threaded fastening mechanism for secure mating and is rated as weatherproof for outdoor or harsh environment use.
The center contact is made of beryllium copper and terminated via solder, while the shield is terminated using a crimp method. The connector is compatible with a wide range of flexible coaxial cables including RG-174, RG-188, RG-188A, RG-316, LMR-100, and M17/119-RG174. The gold-plated housing provides corrosion resistance and reliable electrical performance.
This connector is a free-hanging (in-line) right-angle design, making it suitable for applications where space constraints require a low-profile connection. It is commonly used in RF modules, antennas, wireless infrastructure, and test equipment where RP-SMA interfaces are specified.
50 Ohm.
12.4 GHz.
RP-SMA plug with female socket, right angle, free-hanging.
RG-174, RG-188, RG-188A, RG-316, LMR-100, M17/119-RG174.
Solder.
Yes, it has a weatherproof ingress protection rating.
